Views: 0 Author: Site Editor Publish Time: 2026-09-16 Origin: Site
Inefficient packaging lines compound financial losses daily. Minor inaccuracies in dosing lead to massive annual product giveaway. When every container receives just a fraction of an ounce more than the label claims, the cumulative loss erodes profit margins. Slow changeovers further destroy Overall Equipment Effectiveness (OEE). Every minute spent swapping parts or recalibrating sensors is a minute of lost production capacity.
Operations managers face a constant engineering tension between throughput, precision, and flexibility. Maximizing speed often compromises accuracy. Pushing equipment beyond its optimal cycle rate causes splashing, aeration, or inconsistent fill volumes. Conversely, prioritizing extreme precision can throttle line speeds and increase downtime during SKU transitions. Finding the right balance requires a systematic approach to equipment specification.
This technical evaluation framework helps packaging engineers and facility managers specify the correct machinery based on product rheology, container geometry, and facility constraints. You will learn how to evaluate core dosing technologies, optimize changeover protocols, and integrate new equipment without disrupting existing workflows.
Speed is Contextual: Containers Per Minute (CPM) is a theoretical metric; real-world throughput is dictated by product viscosity, supply pressure, the level of automation, and integration with the broader food jar filling line.
Accuracy Dictates Profitability: Maintaining a tight filling tolerance (e.g., ±0.5% to ±2%) requires consistent product temperature and the correct dosing technology (volumetric vs. net weight).
Changeover Drives OEE: Transitioning from manual or semi-automatic to a fully automatic jar filling machine requires prioritizing tool-less changeovers and recipe-driven HMI controls to minimize planned downtime.
Technology Matching is Non-Negotiable: The physical properties of the product—whether a highly viscous paste, a free-flowing liquid, or a solid granular product like nuts—determine the fundamental architecture of the filler.
Selecting a jar filling machine begins with defining exact operational parameters. Without clear success criteria, facilities risk installing over-engineered systems that complicate maintenance or under-powered units that create permanent bottlenecks. You must establish a baseline of your current operations before reviewing equipment specifications.
Audit your current production bottlenecks before evaluating new equipment. Quantify the exact limitations of your existing process. Manual filling operations inherently lack the accuracy, speed, and consistency of automated systems. Operators experience fatigue, leading to variable fill weights and inconsistent capping torque downstream. To justify capital expenditure, document the current scrap rates, labor hours dedicated to rework, and total product giveaway per shift.
Engineers should conduct a time-and-motion study on the existing line. Track the exact duration of planned downtime during product changeovers. Measure the frequency of quality control rejections due to improper fill levels. Calculate the labor hours spent on manual container handling and sanitation. These metrics provide the financial justification for upgrading your packaging infrastructure.
| Metric Category | Data Points to Capture | Target Improvement Goal |
|---|---|---|
| Product Giveaway | Average overfill volume per batch, total annual lost revenue | Reduce variance to <1% of target fill weight |
| OEE & Downtime | Changeover duration, sanitation time, micro-stops per shift | Achieve sub-30-minute tool-less changeovers |
| Labor Utilization | Operators required per line, hours spent on rework | Reallocate 2+ operators to higher-value facility tasks |
| Quality Control | Rejection rates for under-filled or contaminated jars | Eliminate manual handling contamination risks |
A machine's maximum mechanical cycle rate rarely matches its sustainable operational speed. Equipment manufacturers often quote theoretical Containers Per Minute (CPM) based on ideal conditions using water or uniform solids. Real-world speed accounts for product foaming, container instability, and operator intervention. A filler rated for 150 CPM might only sustain 110 CPM when processing a high-viscosity paste or handling a top-heavy glass jar.
Base your throughput requirements on sustainable OEE rather than peak mechanical limits. You must factor in the centipoise (cP) rating of your product. Water sits at 1 cP and flows instantly. Peanut butter exceeds 250,000 cP and requires heavy mechanical force to move through a manifold. High-viscosity products demand larger nozzle diameters and slower pump speeds to prevent cavitation, permanently capping your maximum CPM regardless of the machine's gearing.
Accuracy directly impacts profitability. Define the strict financial threshold for dosing variance. Regulatory compliance, such as minimum fill weight laws, forces manufacturers to overfill if machine accuracy is poor. If your filler has a ±3% tolerance, you must set the target weight 3% higher than the label claim to avoid legal penalties.
Upgrading to a system with a ±0.5% tolerance reclaims that lost product. Consider a facility producing 100,000 jars daily. If the machine overfills each jar by just 2 grams, the facility loses 200 kilograms of product every single day. Over a year of high-volume production, a 2.5% reduction in giveaway often covers the entire equipment investment. Precision engineering is not a luxury; it is a baseline requirement for volume manufacturing.
Modern production facilities handle diverse product portfolios. The number of container sizes, neck diameters, and product variations dictates the necessity for rapid changeover capabilities. A dedicated line running a single SKU requires minimal flexibility. However, a contract packaging facility switching between peanut butter, salsa, and cosmetic creams multiple times a week demands modular tooling.
Evaluate how many unique setups your production schedule requires monthly. Apply Single-Minute Exchange of Die (SMED) principles to your packaging line. Prioritize equipment that minimizes transition time through standardized change parts and digital recipe management. If a machine takes four hours to sanitize and reconfigure, it is entirely unsuitable for a high-mix production environment.
The physical characteristics of your product dictate the mechanical architecture of the filler. Applying the wrong dosing technology leads to chronic maintenance failures, product degradation, and severe accuracy drift. You must match the machine's fluid handling capabilities to your product's rheology.
Piston fillers operate on a simple volumetric principle. A pneumatic or servo-driven piston draws a specific volume of product from a hopper into a cylinder. A rotary valve then shifts, and the piston pushes the product through a nozzle into the container. This technology excels with viscous products that resist gravity flow. Flow-meter technologies, conversely, measure the exact volume of liquid passing through a magnetic or mass flow sensor, offering high precision for conductive or uniform liquids.
These systems maintain consistent, volume-based dosing where product density remains stable. Industries bottling edible oils, fruit juices, liquid soaps, and heavy cosmetic creams rely heavily on piston architecture. The mechanical force of the piston easily handles particulates, such as fruit chunks in jelly, without crushing the product, provided the rotary valve is sized correctly. Check valves work well for thin liquids, but rotary valves are mandatory for thick pastes or products with suspended solids.

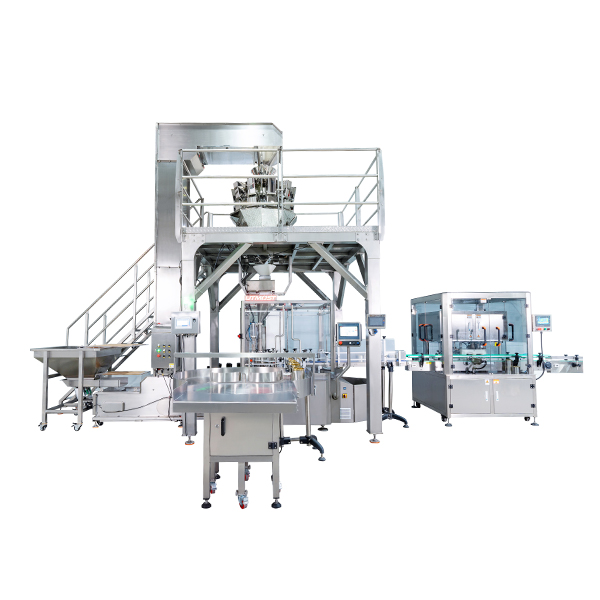

Granular solids and powders require entirely different handling mechanisms. A dedicated nut jar filling machine utilizes multi-head weighers to achieve net-weight accuracy. These systems distribute product across multiple weigh buckets. A central computer calculates which combination of buckets equals the exact target weight and releases them simultaneously. This prevents the severe weight variations that occur when trying to measure irregular solids by volume.
Auger fillers utilize a rotating screw within a conical funnel to dispense powders. The volume dispensed is controlled by the number of auger revolutions. Load cells and vibration feeders work in tandem to achieve precision. The vibration feeder moves irregular shapes smoothly, while load cells provide real-time feedback to stop the feed exactly when the target weight is reached. Free-flowing powders require spinner plates to prevent dripping, while non-free-flowing powders require specialized auger flights to force the product downward.
Facility layout and production volume dictate the choice between inline and rotary architectures. Inline systems feature a linear footprint. Containers move down a conveyor, stop under a row of nozzles, receive the product, and move on. This intermittent motion is highly modular and allows for easier integration into narrow spaces.
A rotary jar filler utilizes continuous motion. Containers enter a rotating carousel via a star wheel. Filling occurs while the container is in motion, drastically increasing throughput. Rotary systems dominate high-speed beverage and food processing environments where stopping the container is inefficient. The continuous motion prevents liquid sloshing, allowing for faster conveyor speeds without spilling product over the jar threads.
| Feature | Inline Filler | Rotary Filler |
|---|---|---|
| Motion Type | Intermittent (Stop-and-go) | Continuous motion |
| Target CPM | Typically 20 to 120 CPM | Typically 200 to 600+ CPM |
| Footprint | Linear, easily fits narrow spaces | Large, circular footprint |
| Changeover Speed | Fast, highly flexible for high-mix lines | Slower, requires swapping heavy star wheels |
| Maintenance Complexity | Low to moderate | High, requires specialized technicians |
Theoretical speed metrics look impressive on a specification sheet, but operational realities dictate actual throughput. Evaluating speed requires analyzing the entire fluid dynamics process and the physical constraints of the packaging materials. You cannot force a machine to run faster than the laws of physics allow.
Fluid dynamics play a critical role during the fill cycle. Narrow necks require slower fill rates to prevent foaming, splashing, or aeration. If you force a high-velocity liquid into a small opening, the displaced air cannot escape fast enough, causing the product to blow back out of the container. Regardless of the machine's mechanical capability, the neck diameter acts as a physical speed limit.
Wide-mouth jars allow for rapid, high-volume dosing because displaced air vents instantly. You must calculate the clearance between the nozzle's outer diameter (OD) and the jar's internal diameter (ID). Insufficient clearance creates a seal, trapping air and causing turbulent flow. Engineers must specify diving nozzles that fill from the bottom up to minimize aeration in foaming products like shampoos or dairy liquids.
The degree of automation acts as a hard cap on sustainable speed. A semi-automatic system requires an operator to manually place containers under the nozzles and trigger the fill cycle. Operator fatigue, distraction, and physical limitations mean theoretical CPM drops significantly. Upgrading to a fully automatic jar filling machine removes the human pacing element. Automated indexing, gating, and conveyor integration ensure the machine runs at a continuous, optimized rhythm.
Manual loading creates inconsistent spacing between containers, causing sensor faults.
Semi-automatic foot pedals introduce variable cycle delays that ruin production schedules.
Fully automated gating systems synchronize perfectly with pump speeds via PLC logic.
Photoelectric sensors detect container presence, preventing the machine from dispensing product onto an empty conveyor.
Viscosity is rarely static. Temperature fluctuations alter product thickness, directly impacting flow rates. A syrup that flows freely at 180°F becomes sluggish at 70°F. If your facility lacks environmental controls, morning production runs will yield different flow dynamics than afternoon runs. This requires dynamic adjustments in the filling cycle.
Servo-driven pumps can automatically adjust their torque and speed based on real-time feedback, compensating for viscosity changes without operator intervention. For highly temperature-sensitive products, you must specify jacketed hoppers. These hoppers circulate hot water or steam through a double wall, utilizing a PID controller to maintain the exact temperature required for optimal flow dynamics.
A high-speed filler provides zero value if the downstream packaging line cannot handle the surge. Analyze the dependencies between the filler and upstream/downstream equipment. If your filler outputs 200 CPM but your capper maxes out at 150 CPM, the filler will constantly pause, causing wear on clutches and brakes.
A synchronized food jar filling line utilizes variable frequency drives (VFDs) and accumulation zones to balance the flow of containers. Bi-directional accumulation tables absorb excess jars when a downstream labeler faults, allowing the filler to continue running. Cascade control logic ensures that conveyor speeds ramp up and down smoothly, preventing jars from colliding and shattering on the line.
Precision engineering separates entry-level equipment from industrial-grade machinery. Minimizing variance requires tight control over mechanical movements, fluid pressures, and environmental variables. You must eliminate the mechanical slop that causes accuracy drift over a long production shift.
Traditional mechanical systems rely on cam-driven adjustments. Changing the fill volume requires an operator to manually turn a handwheel to adjust the stroke length of a piston. This process is imprecise, prone to human error, and suffers from mechanical backlash. Pneumatic cylinders also vary in stroke speed based on fluctuating plant air pressure.
Servo-driven electronic controls offer a massive upgrade. A servo motor coupled with a high-resolution encoder provides exact, repeatable positioning. Operators can make micro-adjustments to the fill volume via a touchscreen interface during active production runs. The servo instantly corrects minor accuracy drifts without stopping the machine, ensuring every single jar meets the target weight.
Variations in supply pressure are the leading cause of accuracy drift in volumetric systems. If the product hopper is full, the head pressure forces liquid into the dosing chamber faster than when the hopper is nearly empty. Maintaining consistent head pressure is mandatory for volumetric accuracy.
Use ultrasonic level sensors integrated with a modulating supply valve to keep the hopper volume constant. As the fluid level drops by a fraction of an inch, the sensor triggers the transfer pump to replenish the hopper. This guarantees that the hydrostatic pressure pushing down on the dosing manifold remains identical for the first jar of the shift and the last jar of the shift.
Realistic benchmarks for modern equipment range from ±0.5% to ±2%, depending on the technology type and product characteristics. Achieving and holding these tolerances over time requires rigorous maintenance. You must implement weekly nozzle checks to identify micro-abrasions that alter spray patterns. Seal inspections prevent air leaks that compromise pneumatic pressure. Regular calibration routines ensure load cells and flow meters remain synchronized with the PLC, preventing batch-wide inconsistencies.
| Dosing Technology | Optimal Product Type | Expected Accuracy Tolerance |
|---|---|---|
| Servo Piston | Thick pastes, creams, gels | ± 0.5% to 1.0% |
| Magnetic Flow Meter | Conductive thin liquids | ± 0.2% to 0.5% |
| Auger Filler | Fine powders, spices | ± 1.0% to 2.0% |
| Multi-Head Weigher | Irregular solids, nuts, candies | ± 0.5% to 1.0% |
In high-mix production environments, the speed of the machine matters less than the speed of the changeover. Reducing planned downtime directly increases available production hours. You must engineer the line to transition between SKUs rapidly and safely.
Evaluate mechanical design features that eliminate the need for hand tools. Operators should be able to swap guide rails, star wheels, and nozzles without wrenches or specialized maintenance personnel. Quick-release pins, calibrated scale rules on conveyor rails, and snap-in nozzle mounts turn a two-hour mechanical teardown into a fifteen-minute transition.
Standardizing container neck sizes across different volumes also minimizes the need to change nozzle tooling. If your 8-ounce jar and your 16-ounce jar share the same thread diameter, the operator only needs to adjust the fill volume on the screen and raise the nozzle height, completely bypassing a physical tooling change.
Automated cleaning cycles are mandatory for food, beverage, and cosmetic applications. Manual sanitation requires dismantling the fluid path, scrubbing components, and reassembling them—a process that introduces the risk of cross-contamination and damaged seals. CIP and SIP systems circulate cleaning chemicals, hot water, and steam through the machine's internal piping without disassembly.
This guarantees repeatable sanitation standards, meets strict regulatory requirements, and drastically reduces sanitation downtime between incompatible product runs. The system must achieve a fluid velocity of at least 5 feet per second to create the turbulent flow necessary to scour the internal pipe walls clean.
Verify rotary spray ball coverage inside the product hopper to prevent shadow zones.
Ensure the fluid path contains no dead legs where bacteria can harbor and multiply.
Confirm the PLC can automate the timing, chemical concentration, and temperature of the caustic wash.
Check that all internal O-rings and sanitary gaskets are rated for high-temperature steam exposure.
Programmable logic controllers (PLCs) combined with intuitive HMIs revolutionize changeovers. Instead of manually adjusting physical settings, operators select a pre-programmed recipe from a touchscreen. The PLC stores specific parameters for different SKUs, including fill volume, pump speed, nozzle dive depth, and conveyor velocity.
This allows for one-touch digital changeovers. Servo motors automatically move to the saved positions, eliminating trial-and-error adjustments and reducing the scrap generated during line startups. Implement tiered user access levels to ensure that only qualified engineers can alter the base recipe parameters, while operators can only select and run existing recipes.
Procuring the equipment is only the first phase. Successful deployment requires preparing your facility infrastructure and maintenance teams for the new operational demands. Failing to upgrade your utilities will throttle the performance of your new machinery.
Automation introduces hidden operational demands. A fully pneumatic piston filler requires a massive volume of clean, dry compressed air. If your existing compressor lacks the CFM (Cubic Feet per Minute) capacity, the filler will stall mid-cycle, causing short fills. You must install refrigerated air dryers to prevent moisture from destroying the internal pneumatic valves.
Electrical load upgrades are often necessary to support multiple servo drives and heated hoppers. A machine running six servo motors requires a dedicated, clean power drop to prevent voltage sags. Furthermore, operator training must shift from manual labor techniques to digital interface management and basic troubleshooting of automated sensors.
Understand the realistic maintenance burden before installation. High-speed machinery consumes wear parts predictably. O-rings, sanitary gaskets, and pneumatic cylinders have specific lifecycle ratings. Running abrasive products, like salt scrubs or pastes with heavy particulates, accelerates wear on piston seals and rotary valves.
Establish a preventative maintenance schedule that dictates exactly when to replace these components before they fail during a production run. Keep a dedicated inventory of critical spares on-site. Waiting three days for a replacement stator tube or a proprietary servo cable will cost your facility exponentially more in lost production than the cost of keeping the part on a shelf.
Facilities often attempt to adapt existing equipment to handle new container formats to save capital. Adapting a bottle filling machine designed for narrow-neck containers to handle wide-mouth jars presents severe engineering challenges. The nozzle dive depths may not reach the bottom of a shallow jar, causing splashing and aeration.
The container handling systems—specifically feed screws and star wheels—are usually profiled for specific cylinder diameters and heights. A tall, thin bottle requires different side-rail support than a short, squat jar. While conversion is sometimes possible through heavy modification, it often compromises both speed and accuracy, making a dedicated jar filler the more reliable and profitable choice.
Take the following actionable steps to finalize your equipment selection and ensure a successful deployment:
Conduct a technical site audit to verify your facility possesses the required compressed air CFM, electrical phase capacity, and floor space for accumulation tables.
Require a Factory Acceptance Testing (FAT) protocol using your actual product and production containers to validate real-world CPM and accuracy tolerances.
Standardize your container neck sizes across multiple SKUs to minimize the need for physical nozzle and star wheel changeovers.
Establish a preventative maintenance contract and secure a localized inventory of critical wear parts, specifically seals and rotary valves, prior to installation.
A: Filling accuracy depends on consistent product temperature, stable supply pressure, and routine machine calibration. The most critical factor is matching the dosing technology to the product's rheology. Volumetric fillers work well for stable liquids, while net-weight fillers are required for irregular solids. Maintaining tight tolerances prevents product giveaway and ensures regulatory compliance.
A: Real-world speed is calculated by factoring the machine's maximum mechanical CPM against product viscosity limits, container neck size, and the level of automation. You must also subtract historical OEE and planned downtime percentages. A machine rated for 300 CPM mechanically may only yield 220 CPM operationally due to fluid dynamic constraints and downstream bottlenecks.
A: Inline fillers use intermittent, linear motion, stopping containers under nozzles. They are highly modular, fit narrow spaces, and are best for high-mix, lower-speed flexibility. Rotary fillers use continuous, circular motion, filling containers as they move through a carousel. They are designed for dedicated, high-speed production environments where stopping containers is inefficient.
A: While mechanically possible, it is rarely optimal. The primary limitations involve container handling components like star wheels and guide rails, which are profiled for specific diameters. Additionally, nozzle dive depths designed for tall bottles often fail to operate correctly in shallow, wide-mouth jars, leading to splashing, aeration, and compromised accuracy.
A: Modern systems equipped with tool-less adjustments, quick-release mechanisms, and recipe-driven HMI controls can complete a changeover in 15 to 30 minutes. Older mechanical systems requiring manual part swaps, wrench adjustments, and manual sanitation can take several hours, severely impacting daily production capacity.
A: A multi-head weigher, which operates as a net-weight filler, is required for mixed nuts. Volumetric liquid fillers or augers cannot handle irregular solid geometries accurately. Multi-head weighers calculate the exact combination of buckets to hit the target weight, preventing massive product giveaway and ensuring the jars meet minimum weight regulations.
