Product Superiority
1.lFeatures guided self-learning, no prior experience required, and delivers excellent high-precision detection.
2.lAdopts artificial intelligence (AI) algorithms, which can detect low-density and extremely tiny foreign objects based on the objects’ various characteristics.
3.lEquipped with a server-grade Linux system, it is immune to computer viruses and ensures no data loss in case of unexpected power outage.
4.lSupports multiple connection methods (4G wireless network and wired network), enabling rapid remote technical support and operation control, as well as automatic pushes of device fault alerts.
5.lExceeds internationally accepted radiation safety standards and specifications, and is equipped with a safety interlock monitoring function.
6.lThe main unit integrates 48–96 channels of array jet valves to precisely reject defective products and minimize the unintended removal of good products.
Parameter
Model | VXD-D1623-S | VXD-D1825-S |
X-Ray Source | 210W/350W | |
Detection Sensitivity | SUS Ball: 0.3mm, SUS Wire: 0.2*2mm, Ceramic/Glass Ball: 1.0mm | |
Operation System | Linux System | |
HMI | 17-inch touch screen | |
Conveyor Speed | 5~80 m/min | |
Products Weight | Max 10kg | |
Aperture Dimension | Max Width 100mm, Max Height 240mm | Max Width 210mm, Max Height 310mm |
Power | AC220V, 50-60Hz | |
Temperature/Humidity | Working Temperature 0~45℃, Relative Humidity 30~85%no condensation | |
IP Grade | IP66 for Conveyor, IP54 for other parts | |
Machine Material | 304 SUS, Mirror/Sandblasted | |

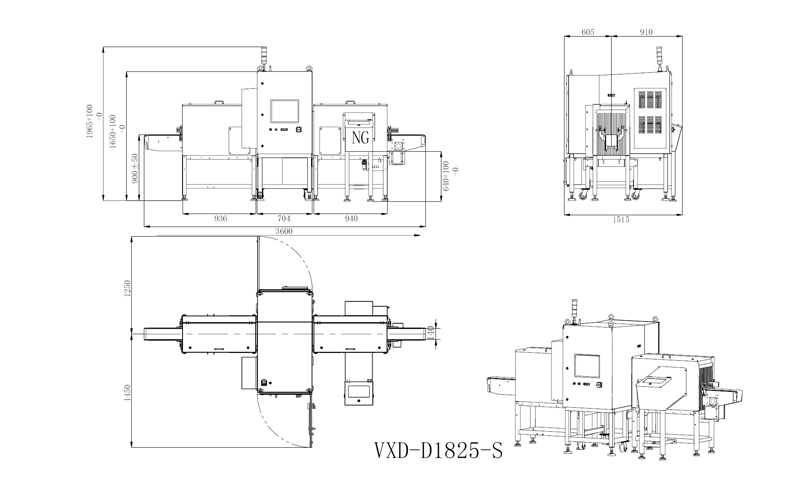

Layout
