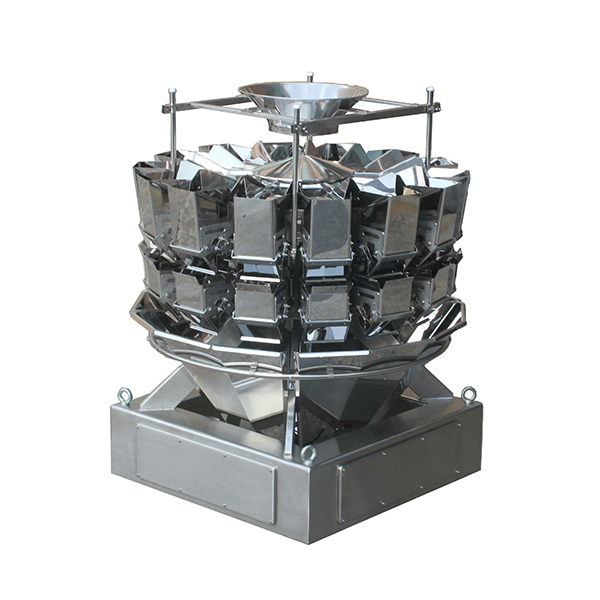

Combination scale with 4 generations and 14 heads

The fourth-generation combination scale comprises 14 heads. Through the utilization of computer-based permutation and combination principles, it automatically optimizes and calculates the load capacity of the weighing units to derive the weight combination that is closest to the target weight value for packaging. Its working principle primarily encompasses steps such as material conveying, vibrating feeding, weighing, combinational calculation, and discharging, achieving the simultaneous execution of dynamic weighing and packaging.

Model:
AC-6B10-4A
Brand:
UTMOST

Availability:

Quantity:



Inquire Add to Basket

4.0 generations combination scale Dosing System Automatic 4.0 generations combination scale Combination scale with 14 heads Electronic Scale Fully Mechanical Scale

Product Description

Functional Features：

• Brand-new square-shaped cabinet for enhanced stability and precision;

• Newly designed structure for wider range of applications;

• Standardly equipped with the 4th generation basic system for higher speed and precision;

• Entirely made of 304 stainless steel for dust-proof and rust-resistant properties;

• Simple and convenient operation with touch screen control in multiple languages.

Basic Parameters:

Product Parameters
Name	4th generation with 14 hoppers and 1.6L capacity	4th generation with 14 hoppers and 3L capacity
Model	AC-6B10-4A
Max Speed	50-80 times/min	40-80 times/min
Accuracy Level	X(2) level	X(2) level
Power Requirements	220V,50HZ,2.0KW	220V,50/60Hz,1.5-2KW
Hopper Capacity	1.6L	3L
Display	10.4 inches color touch screen	10.4 inches color touch screen
Optional Modifications	Independent Linear Vibrator/V-shaped Linear Vibrator/Rotating Main Vibrator/Hopper Texture/Diameter and Angle of Main Vibrating Disk/316 Stainless Steel Plate/Angle of Linear Vibrator/Division, Diameter, and Angle of Feeding Tray/Diameter and Angle of Discharge Tray Baffle/Densification of Hopper and Collecting Hopper/Coated with Teflon/Modification of Chute Angle and Support/Independent Machine Case/Anti-Condensation Water Measures
