Scaling packaging operations forces a critical engineering choice between raw throughput efficiency and premium retail presentation. Facility managers and production engineers frequently encounter a core operational problem. Misaligning machine architecture with product characteristics, SKU variability, or annual volume leads to severe consequences. Production lines become bottlenecked. Material waste escalates rapidly. Brand positioning suffers when shelf aesthetics fail to meet consumer expectations. You need an objective, technical evaluation of how a premade pouch packaging machine compares to Vertical Form Fill Seal (VFFS) systems. This analysis covers operational flexibility, mechanical workflows, and implementation realities on the factory floor. By examining these engineering constraints and facility integration requirements, you will understand which system aligns perfectly with your specific production demands. You will learn how to optimize throughput while maintaining strict quality control across your entire packaging portfolio.
VFFS systems dominate high-volume, continuous runs (typically >50 million units annually) where minimizing per-bag material cost and maximizing speed (>60 bags/min) are the primary objectives.
Premade pouch machines excel in high-mix environments requiring frequent changeovers, handling complex bag geometries (stand-up, zippers, spouts) with lower annual volumes per SKU.
Material economics dictate the baseline choice: VFFS utilizes highly economical rollstock film formed on-the-fly, whereas premade bags carry a higher upfront unit cost but drastically reduce on-site forming waste and registration errors.
This system operates by picking, opening, filling, and sealing ready-made, pre-converted bags sourced directly from a supplier. The mechanical workflow relies on a series of specialized, discrete stations rather than a continuous web of material. The machine handles one physical bag at a time, moving it through a precise sequence of pneumatic and mechanical actions.
The standard operational sequence follows these exact mechanical steps:
Magazine Loading: Operators stack hundreds of flat, pre-formed pouches into an adjustable feeding magazine.
Extraction and Transfer: A rotary arm equipped with vacuum suction cups extracts a single pouch and transfers it to the primary mechanical grippers.
Opening Sequence: Top-mounted vacuum cups pull the front and back panels apart while a directed blast of compressed air inflates the bottom gusset.
Photo-Eye Verification: Optical sensors confirm the bag is fully open. If the bag fails to open, the PLC engages a no-fill, no-seal logic protocol to prevent product spills.
Dosing: The open bag moves under the filling equipment where the product drops in.
Sealing and Cooling: Heat bars apply precise temperature and pressure to close the top, followed immediately by cold bars that set the seal.
Discharge: The grippers release the finished package onto an outfeed conveyor.
System variations primarily differentiate between inline configurations and a rotary pouch packer. Rotary models utilize a circular station flow. This design optimizes the facility footprint by keeping the mechanical chassis compact. Inline systems utilize a linear flow. Engineers specify inline models for larger bag formats or complex multi-step filling sequences that require extended physical space along the conveyor.
These machines handle heavy laminations and integrated closures like zippers or spouts effortlessly. Premium retail presentation remains the primary use case. Seal integrity is guaranteed off-site by the film converter, eliminating the risk of forming structural seals on the production floor.

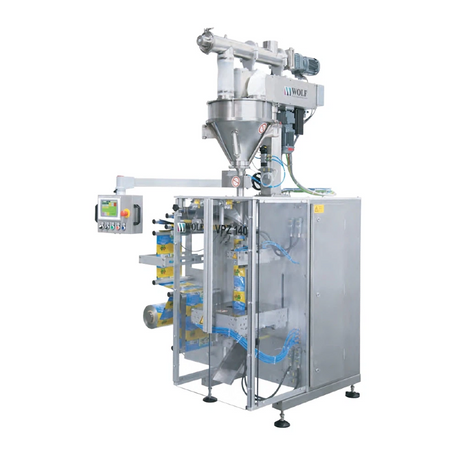

This architecture forms bags in real-time from a continuous roll of flat film. A VFFS machine pulls the film web over a forming collar, shaping the flat material into a continuous tube. A vertical seal bar welds the edges together. The product drops down through the center of the forming tube. Horizontal seal jaws simultaneously close the top of the filled bag and the bottom of the next bag in a single motion. A pneumatic knife then separates the completed package.
The continuous web path requires precise tension control and tracking:
Film Unwind: Motorized rollers pull the raw film from a heavy unwind stand.
Tension Control: Dancer rollers equipped with pneumatic cylinders absorb tension spikes as the roll diameter decreases.
Web Tracking: Automated edge-guide systems keep the film aligned. If the film drifts, the vertical seal overlaps incorrectly.
Registration: Optical sensors read a printed eye-mark on the film, telling the PLC exactly when to fire the cutting knife.
Forming and Sealing: The film passes over the collar, receives the vertical seal, fills with product, and receives the horizontal seal.
System variations include intermittent motion and continuous motion designs. Intermittent motion represents the standard stop-and-seal approach. The film web pauses momentarily while the seal jaws close. Continuous motion systems keep the film web moving without interruption. The seal jaws travel downward with the film during the sealing phase. This enables high-speed, rapid production.
Continuous motion vertical systems dominate raw output metrics. The film never stops moving. These systems often exceed 60 to 100 bags per minute on dedicated, single-format lines. The uninterrupted film web allows for rapid indexing. Facilities producing massive volumes of a single SKU rely heavily on this continuous throughput to meet aggressive daily quotas. The primary speed limitation on a vertical line is usually the dosing equipment above it, not the bagging machine itself.
Premade systems operate under different mechanical constraints. They are limited by intermittent motion and the physical physics of moving a discrete bag. Moving individual bags between stations requires precise timing and mechanical settling. They operate slower per lane compared to vertical systems, typically maxing out around 40 to 60 bags per minute. However, they remain highly reliable for complex, multi-stage fills. They execute intricate filling sequences without compromising seal quality or bag aesthetics.
Consumable economics play a massive role in equipment selection. You must compare the per-unit cost of rollstock film versus pre-converted pouches. Rollstock film costs significantly less per unit because you purchase raw, unformed material. Pre-converted pouches carry a higher upfront cost. The film converter has already absorbed the labor and machinery costs to form the bag, apply zippers, and create the structural seals.
Industry-standard break-even points help clarify this decision. A premade bag packaging machine proves highly cost-effective below 15 to 20 million annual units. The operational flexibility outweighs the higher consumable cost at these volumes. Conversely, vertical systems dominate the 50 million unit threshold. The massive volume leverages the lower rollstock cost to maximize profitability.
Waste factors differ drastically between the two architectures. Vertical systems experience film registration errors, edge-trim waste, and splicing losses during roll changes. Startup sequences generate scrap until the seal jaws reach thermal equilibrium. Premade systems eliminate forming waste. Their primary scrap sources involve occasional mis-picks from the magazine or vacuum suction failures. Overall material waste remains significantly lower on premade lines.
High-mix environments demand rapid changeovers. Premade systems offer superior agility for facilities managing dozens of different SKUs. Changing bag types requires minimal mechanical intervention. Operators adjust gripper widths via an HMI recipe. Simple hand cranks fine-tune the magazine guides. This modularity makes them ideal for contract packagers managing multiple client profiles daily. A standard changeover takes less than 15 minutes.
Dedicated line requirements dictate the vertical machine changeover process. Switching bag sizes requires heavy forming tube swap-outs. Operators often need a mechanical hoist to lift the stainless steel collar assembly. They must manage complex film threading through multiple dancer rollers. They must execute precise seal jaw temperature calibration for different film thicknesses. This results in longer planned downtime, often exceeding 45 minutes. Frequent changeovers severely degrade the Overall Equipment Effectiveness (OEE) of a vertical line.
Vertical systems face structural difficulties with premium packaging features. Handling heavy, rigid laminations proves challenging over a forming collar. The thick material resists bending and often cracks at the creases. Precise zipper alignments require complex web tracking mechanisms. Achieving premium stand-up requirements often necessitates specialized tooling and slower run speeds. The continuous forming process limits structural complexity.
Pre-formed pouches provide superior shelf presence. Film converters manufacture these bags on dedicated, flat-bed pouch making machines. This ensures consistent off-site seal integrity. It enables advanced closure options like child-resistant zippers, corner spouts, and precise tear notches. The final retail presentation looks flawless because the structural integrity does not depend on the filling machine's forming capabilities.
| Operational Metric | Premade Pouch Systems | Vertical Form Fill Seal (VFFS) |
|---|---|---|
| Primary Motion Type | Intermittent / Indexing | Continuous or Intermittent |
| Typical Output Speed | 30 - 60 bags per minute | 60 - 100+ bags per minute |
| Average Changeover Duration | 5 - 15 minutes (Toolless) | 30 - 60 minutes (Requires Tools/Hoists) |
| Material Format | Pre-converted individual bags | Continuous rollstock film |
| Startup Scrap Rate | Near Zero | Moderate (Thermal calibration phase) |
| Bag Complexity Capabilities | High (Spouts, custom shapes, heavy zippers) | Low to Medium (Pillow, basic gusseted) |
Dust control heavily influences seal integrity in both systems. Powders generate airborne particulates during the filling phase. These particulates settle into the seal area. Contaminated seals fail during transport. Dust-extraction nozzles become necessary to vacuum airborne particles before the seal jaws close. Static elimination bars also help prevent powder from clinging to the inner film surfaces.

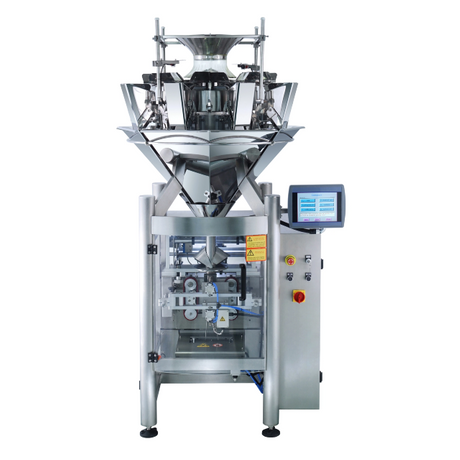

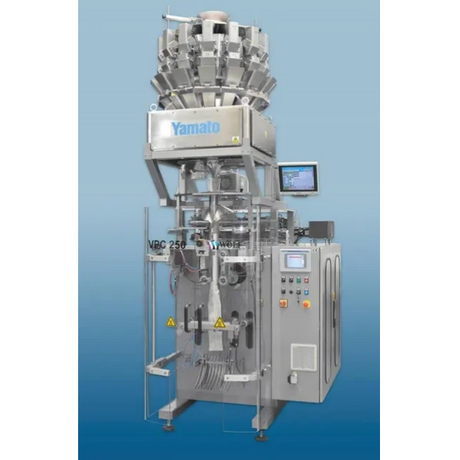

Vertical systems serve as the industry standard for bulk snacks, coffee, and basic powders. Gravity-fed efficiency drives this dominance. The product drops straight down through the forming tube into the bag. High-speed continuous motion pairs perfectly with volumetric cup fillers or auger dosing systems. The vertical drop maximizes throughput for non-fragile, free-flowing goods. The angle of repose for most granular products allows them to settle quickly at the bottom of the forming tube.
Liquid splashing creates severe contamination risks during rapid indexing. When a machine moves a partially filled bag to the next station, the liquid sloshes. If the liquid breaches the seal zone, the heat seal will fail. Viscous pastes present similar challenges. They can string or drip from the filling nozzle after the dosing cycle completes, leaving a trail of product across the seal area.
Facilities rely on a specialized food pouch packing machine to handle these challenges. These systems utilize diving nozzles that enter the bag before dispensing. Positive displacement pumps ensure accurate dosing without dripping. They handle spouted pouches, heavy viscous liquids, and retort applications effectively. Seal reliability remains paramount. Pre-made bags provide a clean, dry seal area prior to filling, reducing the risk of liquid contamination.
Handling constraints dictate equipment choices for delicate products. The vertical drop height in vertical systems introduces significant product breakage risks. Snacks, premium baked goods, or delicate confections shatter upon impact. The distance from the multi-head weigher down through the forming tube to the bottom of the bag creates a high-velocity drop. You cannot easily mitigate this gravity-driven impact without slowing the machine down drastically.
A pouch filling machine provides gentle handling solutions. The multi-stage filling capabilities protect fragile items. Facilities integrate bucket elevators with shallow drop angles. The bags remain stationary or move smoothly between horizontal stations. Operators implement gas flushing to cushion the product before sealing. This gentle workflow preserves product integrity and minimizes crumb generation inside the package.
Vertical clearance dictates machine selection in older facilities. A standard vertical system requires substantial headroom. You have the base machine, the forming tube assembly, and the dosing equipment stacked vertically. If you run a multi-head weigher, it sits on a structural mezzanine above the bagger. Add a bucket elevator or cross-feeder to supply that weigher, and you easily need 14 to 16 feet of clear ceiling height. Plant managers often face massive structural engineering costs just to reinforce the floor and build these mezzanines.
Premade systems operate on a horizontal plane. They consume more floor-level square footage but fit comfortably under standard 9-foot ceilings. You avoid the mezzanine construction entirely. Operators monitor the entire filling and sealing process from ground level. This horizontal layout also simplifies sanitation. Washdown crews do not need to climb stairs or use extended boom lifts to clean overhead weighers.
Running a vertical line requires a skilled operator with strong mechanical intuition. The process involves dynamic variables. Ambient factory temperature changes the film's stretch characteristics. Humidity affects how powders drop through the forming tube. Operators constantly tweak seal jaw temperatures, adjust pneumatic knife pressures, and realign web tracking sensors. When a vertical machine jams, clearing the forming tube and re-threading the film takes time and expertise.
Premade systems rely on discrete mechanical steps. The machine handles one physical bag at a time. If a bag fails to open, it simply drops into a reject bin, and the machine continues to the next cycle. Maintenance focuses heavily on pneumatics. Technicians spend their time replacing worn vacuum suction cups, cleaning air filters, and lubricating mechanical gripper cams. The learning curve for new operators is significantly shorter because they are not managing a continuous web of raw material.
| Maintenance Category | Premade Pouch Systems | Vertical Form Fill Seal (VFFS) |
|---|---|---|
| High-Wear Components | Vacuum suction cups, pneumatic cylinders, gripper springs | Teflon seal bands, cutting knives, forming collars |
| Calibration Frequency | Low (Set once per bag recipe) | High (Constant web tracking and tension adjustments) |
| Sanitation Access | Excellent (Ground-level horizontal access) | Poor (Requires overhead access and mezzanine cleaning) |
| Troubleshooting Complexity | Basic (Discrete mechanical/pneumatic failures) | Advanced (Dynamic film behavior and thermal variables) |
Line synchronization requires precise engineering. Facilities must sync both machine types with complex upstream and downstream networks. Upstream integration involves PLC handshakes with multi-head weighers, liquid pumps, or auger fillers. The bagging machine must signal the doser exactly when the bag is open and ready to receive product. A delay of milliseconds causes product to spill onto the floor.
Downstream integration involves moving the sealed bags through quality control. Conveyors transport the pouches through metal detectors and checkweighers. Reject stations automatically remove under-filled or contaminated packages. Finally, the bags enter automated case packers or robotic palletizing cells. Engineers program the central PLC to manage the speed and timing of the entire line. Bottlenecks occur if the bagging machine outpaces the case packer or if the dosing equipment lags behind the bagger.
Selecting the correct packaging architecture requires a hard look at your production data, not just machine specifications. You must evaluate your facility constraints, operator skill levels, and the specific physical behaviors of your product. Before requesting equipment quotes or committing to a specific mechanical platform, execute the following operational assessments to ensure your capital investment aligns with your factory floor realities.
Conduct a detailed time-study on your current manual or semi-automated changeover processes to identify exact lost production hours.
Request material samples from multiple film converters to evaluate the structural integrity of pre-formed bags versus raw rollstock.
Map out your facility floor space, paying strict attention to vertical clearance limits and structural support requirements for overhead mezzanines.
Schedule a Factory Acceptance Test (FAT) consultation with equipment manufacturers using your actual product and film specifications.
A: Rollstock film costs significantly less per unit because you purchase raw, unformed material. Pre-converted pouches carry a higher upfront cost. The film converter absorbs the labor and machinery expenses to form the bag, apply zippers, and create structural seals before shipping them to your facility.
A: Yes. These machines handle liquids efficiently by utilizing specialized diving nozzles and positive displacement pumps. The nozzles enter the bag to dispense the liquid, minimizing splashing. This ensures the seal area remains clean and dry, which prevents contamination and maintains strict seal integrity.
A: Changeovers on rotary systems typically take 5 to 15 minutes. Operators simply adjust gripper widths via an HMI and turn hand cranks. Vertical machines require 30 to 60 minutes for changeovers. Operators must swap heavy forming tubes, re-thread the film web, and recalibrate seal jaw temperatures.
A: Vertical systems generally become highly justified when production volumes exceed 50 million units annually for a single SKU. At this massive scale, the lower cost of rollstock film offsets the longer changeover times and higher scrap rates associated with continuous forming processes.
A: While possible, it presents significant structural and mechanical challenges. Handling heavy laminations over a forming collar is difficult. Applying zippers on-the-fly requires complex web tracking and precise alignment. This often slows down production speeds and increases the risk of seal failures.
A: Common maintenance tasks involve replacing worn vacuum suction cups, clearing debris from pneumatic valves, and adjusting mechanical gripper tension. Because these machines handle discrete bags rather than continuous film webs, maintenance is generally straightforward and requires less specialized mechanical troubleshooting.
