Functional Features
1.High-precision, specially-made sensors are utilized.
2.Intelligent fault alarm prompts make maintenance more convenient.
3.The high-speed asynchronous material discharge function effectively prevents material blockage.
4.Automatic compensation is performed during the mixing mode.
5.The modular circuit board enables an intelligent, multiple-sampling stability mode for more precise weighing.
Product Features and Product Characteristics
1.The universal hopper weighing unit enhances the interchangeability of parts for the entire machine.

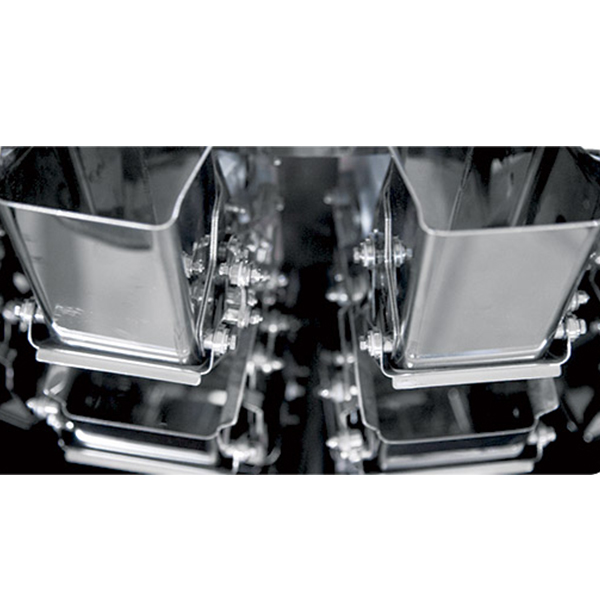

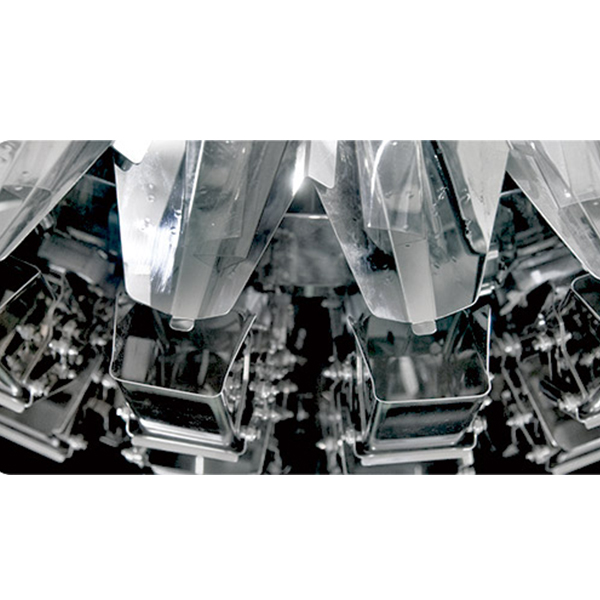

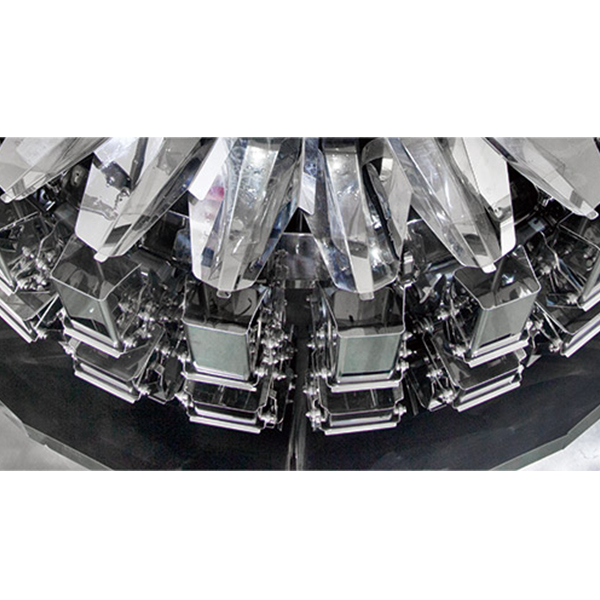

2.Equipped with a memory hopper, it realizes temporary storage of weighed materials, increases the combination probability, and effectively improves the combination accuracy.

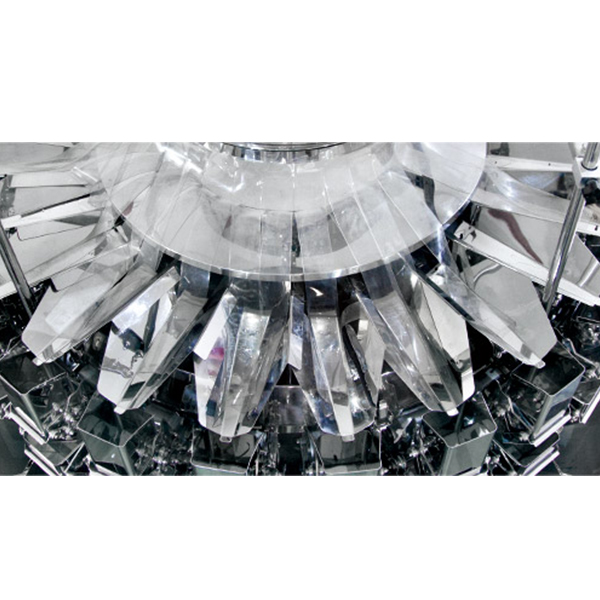

3.By adopting a partitioned main vibrating disk, a single machine can be used for over 2 types (up to 6 types) of mixed material formula applications.
4.Independent main vibrators are employed to separately control the feeding thickness of different materials.
5.The integrated welding of the rectangular chassis and the middle seat significantly enhances the strength of the machine, resulting in a shorter stabilization time for the hopper.
Basic Parameters

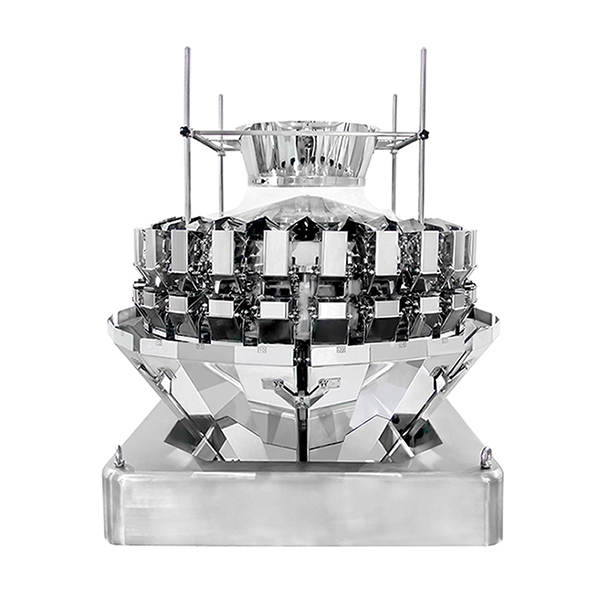

Model | JW-A24 |
Identification code | A24-4-1 |
Weighing range | 12-1000g |
Weighing accuracy range | X(0.5) |
Max weighing speed | 60x6P/M |
Hopper capacity | 0.5L |
Operating interface | 10.1 inches touch screen |
Optional device | Patterned weighing hopper / Aggregate hopper / Data printing device / Overweight sorting device |
Drive mode | Stepper motor |
Power Requirements | 110/220V/2800W/50/60Hz/13A |
Packaging size(mm) | 2100(L)x1480(W)x1130(H) |
Packaging weight | 650kg |
