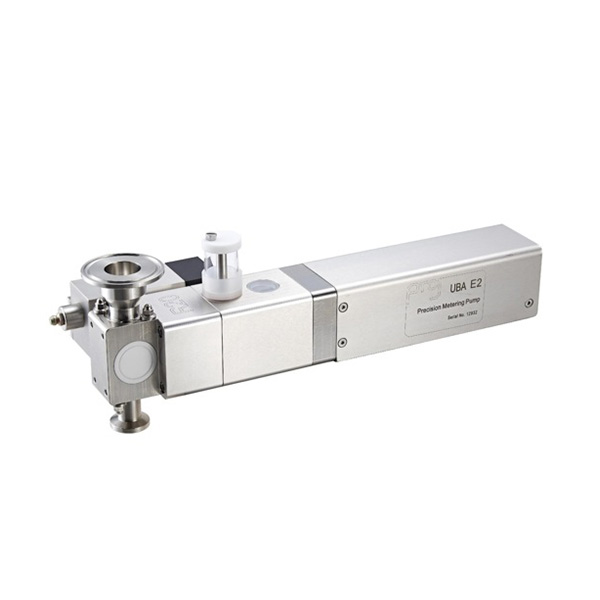

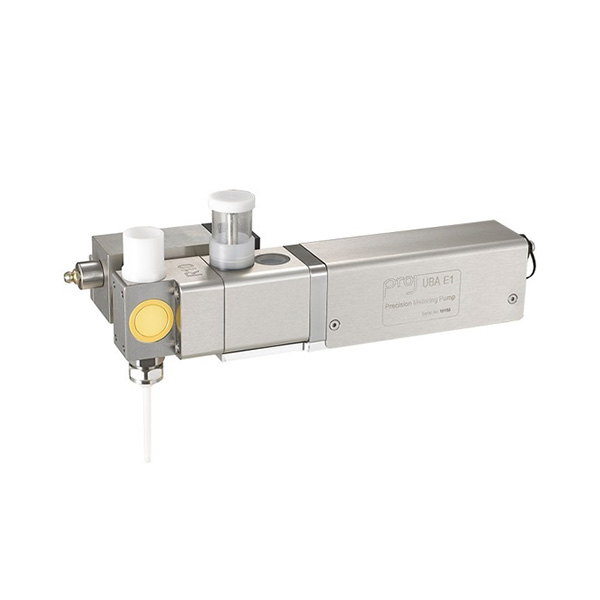

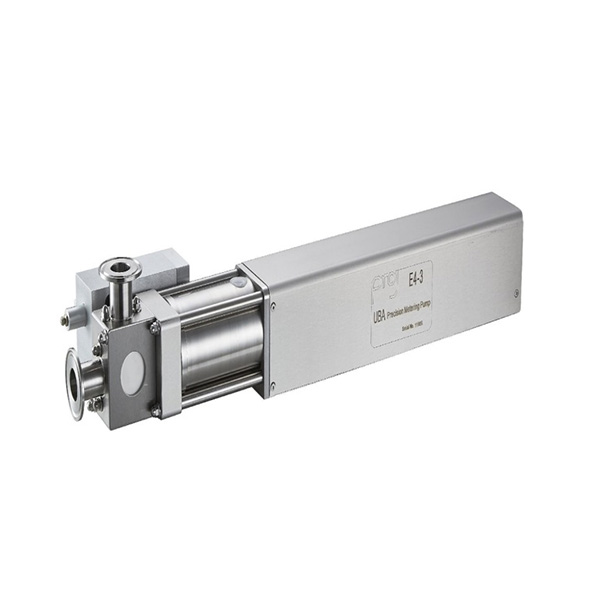

1.The E-R series metering pumps feature a precision ceramic rotary valve design, making them suitable for quantitative liquid injection of various medium to high viscosity liquids (1000-100,000CPS) as well as liquids containing particles.
2.Driven by a stepper motor or servo motor, the precision screw drive system allows for the setting of all injection parameters through a color touch screen, eliminating the need for any mechanical adjustments to the pump. This enables precise control of the injection volume, achieving quantitative liquid injection under various conditions. Multiple stroke operations can be set up to achieve automatic quantitative liquid injection of any large capacity.
3.The metering pumps in this series offer extremely high metering accuracy and repeatability, with an accuracy of better than ±0.5%.
4.The standard pump model features an all-316 stainless steel structure, with all pump components exhibiting superior corrosion resistance. In practical applications such as lithium-ion battery filling, its corrosion resistance surpasses similar types of imported metering pumps. Customized pumps for strong acid injection are also available.
5.The pump's disassembly and cleaning process meets food hygiene requirements for filling.
6.Its modular design facilitates easy integration with filling systems.
Customization：Available
After-sales Service：Provide on-Site Service
Warranty：1 Year
Origin：China
Transport Package：Wooden Case
