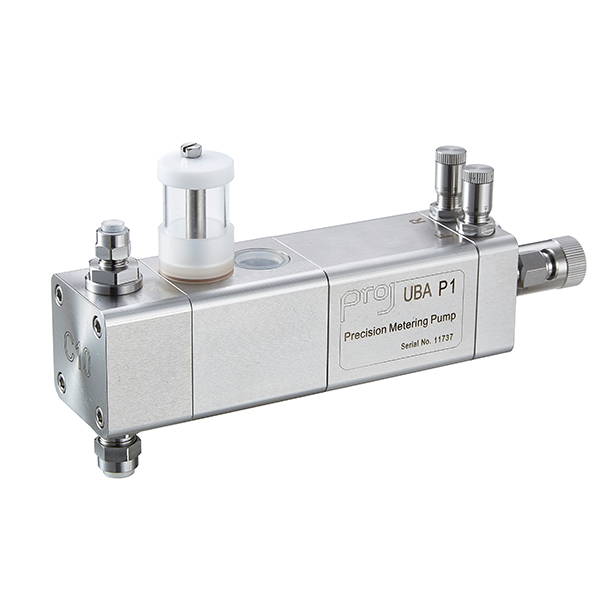

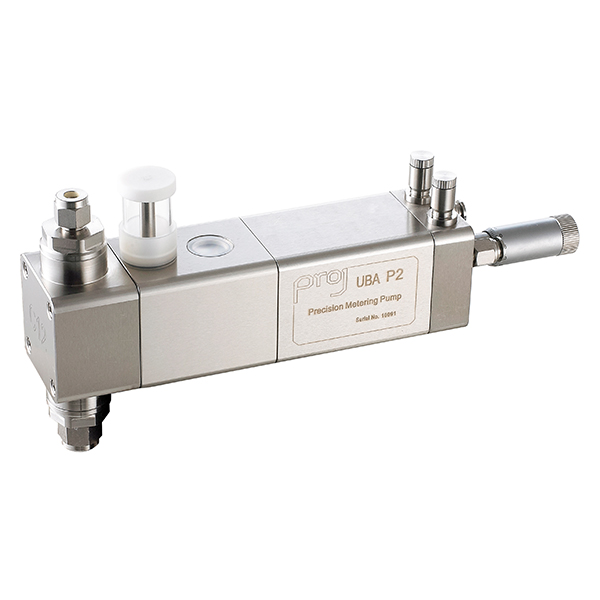

1.The metering pumps in the P1-C/P2-C series adopt a precision one-way valve design, making them suitable for quantitative liquid injection of various medium-to-low viscosity liquids (1-20,000 CPS) without particles.
2.Equipped with a micrometer capacity differential head and an integrated built-in speed controller, the pumps can precisely control the liquid injection volume and speed, enabling quantitative liquid injection under various conditions.
3.This series of metering pumps boasts extremely high metering accuracy and repeatability, with an accuracy of better than ±0.5%.
4.The standard pump model features an all-316 stainless steel construction, ensuring superior corrosion resistance for all pump components.
5.The pumps are designed for easy disassembly, cleaning, and assembly, meeting food hygiene requirements for filling applications.
6.The modular design facilitates easy integration with filling systems.
Model | Plunger Dia. | Stroke | Dispensing Vol. | Cycle Rate | Air Consumption | Dimensions (MM) | Weight | ||||||||
MM | MM | ML | Cycle / Min. | L/Min. | A | B | C | D | E | F | G | H | S | KG | |
P1-C03 | 4.7 | 12.7 | 0 - 0.22 | 0 -150 | 12.5 | 45 | 86 | 191 | 59.7 | 34.3 | 31.8 | 8-32 | 85.3 | 12.7 | 2.5 |
P1-C05 | 7.9 | 0 - 0.63 | |||||||||||||
P1-C07 | 11.1 | 0 - 1.2 | |||||||||||||
P1-C10 | 15.9 | 0 - 2.5 | |||||||||||||
P2-C10 | 15.9 | 25.4 | 0 - 5.0 | 0 - 120 | 23.5 | 52 | 93 | 242 | 82.3 | 31.5 | 38.1 | 8-32 | 97.2 | 25.4 | 3.2 |
P2-C12 | 19.1 | 0 - 7.2 | |||||||||||||
P2-C14 | 22.2 | 0 - 9.8 | |||||||||||||
P2-C17 | 27 | 0 - 14.5 | |||||||||||||
P2-C20 | 31.8 | 0 - 20.1 | |||||||||||||
