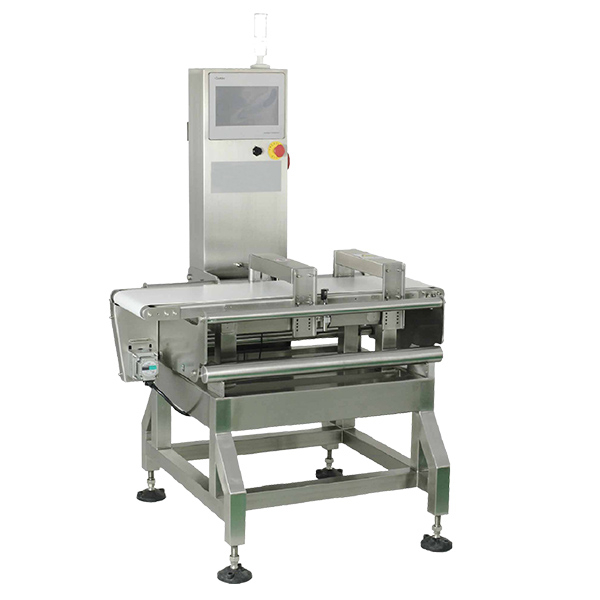

250&350&500
UTMOST
Availability: | |
---|---|
Quantity: | |
1.Original imported aluminum foil-specific detector head with adjustable height.
2.Online drive component fault-safe online detection function.
3.Original DC brushless motor from Oriental Motor, Japan.
4.Original motor drive controller from Oriental Motor, Japan.
5.Swiss Habasit food-grade PU conveyor belt.
6.Original pneumatic components from SMC, Japan (optional).
7.Intelligent sensitivity level settings with wide applicability.
8.Full stainless steel 304 frame.
Basic Parameters:
Model/AFM | 250 | 350 | 500 | Other Specifications | |
Window Width(mm) | 250 | 350 | 500 | See detailed selection catalog for more specifications, or customization is available. | |
Window Height(mm) | 50~120 | 50~120 | 50~120 | ||
Empty Machine Accuracy(mm) | Fe | 1.0 | 1.0 | 1.2 | |
SUS 304 | 2.0 | 2.0 | 2.0 | ||
Parameter Settings | Intelligent Self-Learning | ||||
Belt Width(mm) | 250 | 350 | 500 | ||
Belt Length(mm) | 1200 | 1200 | 1500 | ||
Max Load(kg) | 10 | 15 | 15 | ||
Belt Height from Ground(mm) | 700-820/780-900 or customization | ||||
Rejector Type | Air blow/Push rod/Swing arm/Flap/Belt drop |
