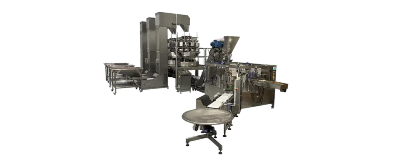

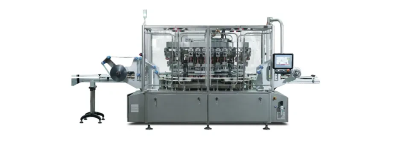

Rotary Pre-made Bag Counting and Packaging Machine RP8-300/350CW

This equipment is suitable for automatically counting, filling, and sealing small bags such as coffee packs, cereal packs, Isatis root, Xiasangju (a traditional Chinese herbal tea), milk packs, and more. The entire system features a high level of automation, saving labor costs and improving productivity. Speed: up to 30 bags per minute.

Model:
RP8-300/350CW
Brand:
UTMOST

Availability:

Quantity:



Inquire Add to Basket

Fully Mechanical Rotary Pre-made Bag Counting Packaging Machine Automatic Rotary Pre-made Bag Counting Packaging Machine High Speed Rotary Pre-made Bag Counting Packaging Machine High Effiency Rotary Pre-made Bag Counting Packaging Machine High Performance Rotary Pre-made Bag Counting Packaging Machine Rotary Pouch Packer

Product Description

Core Competitiveness:

Easy Specification Change
a) Adjust the handle to accommodate different bag widths.
b) Rotate the button to the desired pocket width for simplicity and convenience.

Performance Features：

a) Easy Specification Change: Quick changeover with just one button.
b) Variable Frequency Speed Control: Uses a variable frequency adjustment device to freely adjust the speed within the specified range
c) Automatic Empty Bag Rejection and Reuse: saves on consumables by automatically rejecting empty bags and allowing for reuse.
d) il-free Vacuum Pump: Avoids contamination of the production environment.
e) Food-grade Materials: All parts in contact with materials are made of 304 stainless stee, complying with food hygiene standards.
f) Easy Cleaning: The machine's tabletop is washable.
9) Simple Operation: PLC control with a user-friendly human-machine interface.
h) Date Printing Adjustment: Easy-to-use knob for adiusting the date printing settings

Technical Parameters：

Model	RP8-300CW	RP8-350CW
Production capacity	30-45Bags/minute	30-40Bags/minute
Packaging container	Zipper stand-up pouch, stand-up pouch, flat pouch (three-side seal, four-side seal, folded edge pouch, etc.)
Container size	W:200X300mm L:200X450mm	W:250-350mm L:≤500mm
Voltage	380v,1ph,50HZ/60HZ
Power consumption	4.0KW	4.0KW
Gas consumption	0.6m³/min	0.6m³/min
Pressure	0.6Mpa	0.6Mpa
Machine size	L3153×2215×1700mm	L3433×2506×1812mm
Weight	2600KG	2900KG
