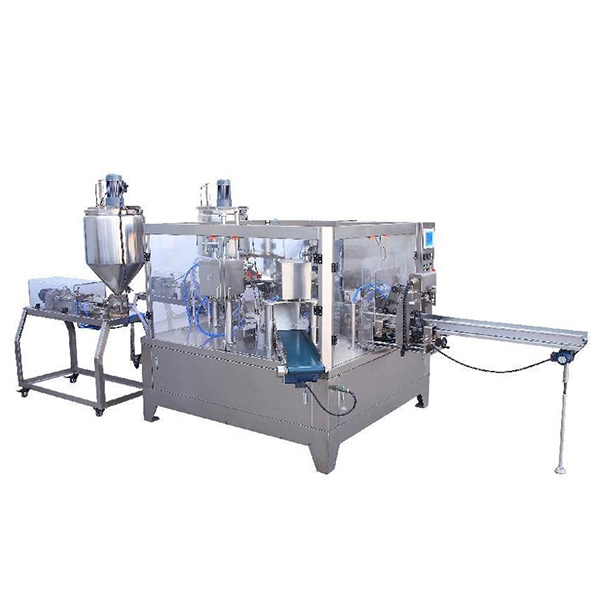

Rotary Pre-made Bag Liquid Packaging Machine RP8-200L

Rotary bag feeding machine with liquid filling capability, suitable for liquids.

Bag type: Stand-up pouch. Optional zipper opening device.

Maximum filling capacity of 1KG, with a speed of approximately 30-40 bags per minute.

Product Description

Core Competitiveness:

a）Adjust the handle to accommodate different bag widths.

b）Rotate the button to the desired pocket width for simplicity and convenience.

a）Easy Specification Change: Quick changeover with just one button.

b）Variable Frequency Speed Control: Uses a variable frequency adjustment device to freely adjust the speed within the specified range.

c）Automatic Empty Bag Rejection and Reuse: Saves on consumables by automatically rejecting empty bags and allowing for reuse.

d）Oil-free Vacuum Pump: Avoids contamination of the production environment.

e）Food-grade Materials: All parts in contact with materials are made of 304 stainless steel, complying with food hygiene standards.

f）Easy Cleaning: The machine's tabletop is washable.

g）Simple Operation: PLC control with a user-friendly human-machine interface.

h）Date Printing Adjustment: Easy-to-use knob for adjusting the date printing settings.

Model	RP8-200L	RP8-250L	RP8-300L	RP8-350L
Capacity	30-40bags/min	30-45bags/min	30-45bags/min	30-40bags/min
Packaging Container	Stand-up pouch, gusseted bag, and flat bag (including three-side seal, four-side seal, and folded bag, etc.)
Container Size	W:100X210mm L:100X350mm	W:150X260mm L:150X350mm	W:200X300mm L:200X450mm	W:250-350mm L:≤500mm
Voltage	380v,1ph,50HZ/60HZ
Power consumption	3.0KW	4.0KW	4.0KW	4.0KW
Air Consumption	0.6m³/min	0.6m³/min	0.6m³/min	0.6m³/min
Pressure	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
Machine Dimensions	L2739×2031×1610mm	L3153×2215×1700mm	L3153×2215×1700mm	L3433×2506×1812mm
Weight	2000KG	2400KG	2600KG	2900KG
