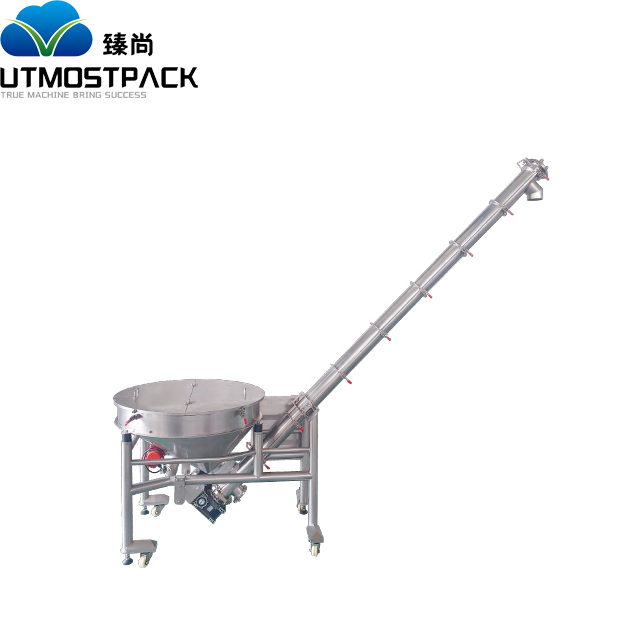

Screw feeder features
1.Main frame: the circular tube Phi 60*3 welded composition, with a solid structure, beautiful, easy to clean.

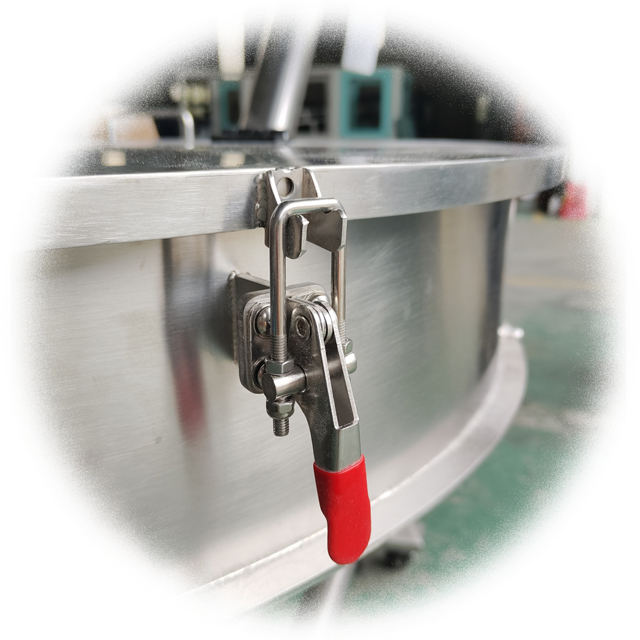

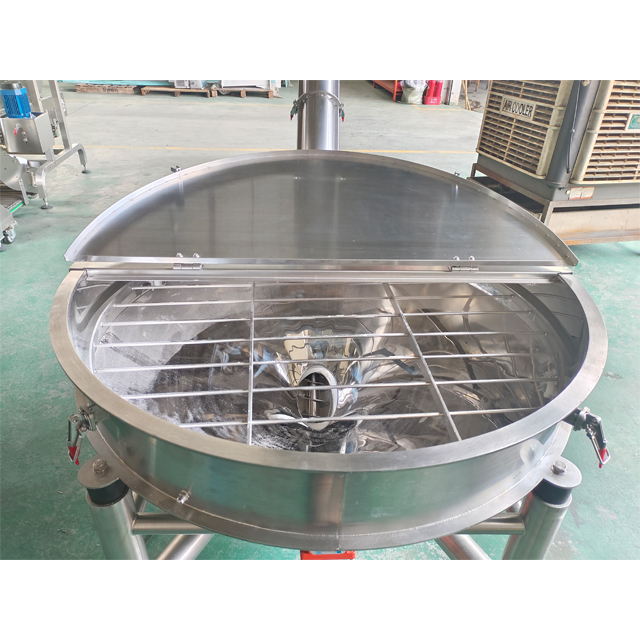

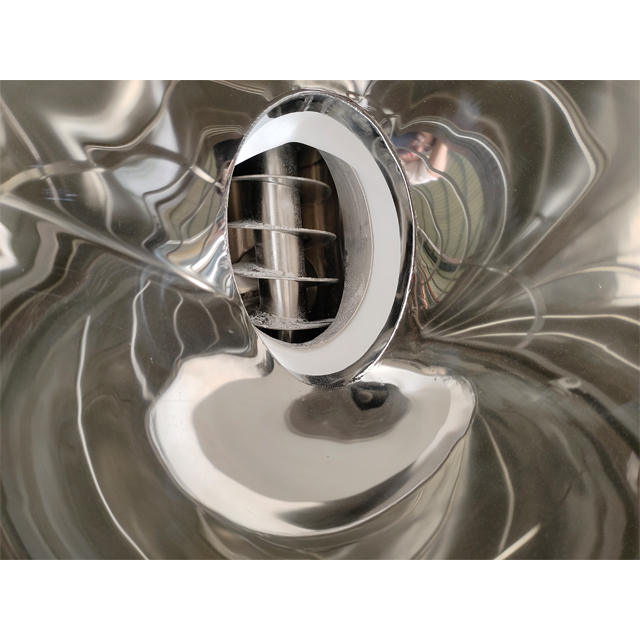

2.Conical bin: the interior is smooth and smooth, and the middle layer is easily disassembled, which can also block large hard materials. External device vibration motor efficient aggregate output. Circular quick-opening lid for easy feeding.
3.Discharge pipe: straight cylindrical pipe and semi-open round pipe. All are internal polished tubes, connected with the motor for cone type interface quick mounting flange, the top cover for gland type quick mounting flange. The semi-open type is sealed by foamed silicone on the middle gap of the round tube, and there are multiple quick clamping buttons on both sides of the half tube, which has a more convenient and effective internal cleaning.

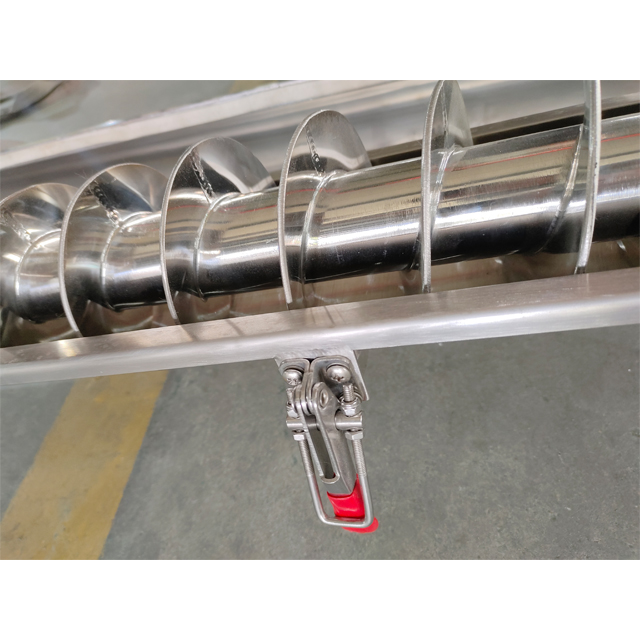

4.Spiral shaft: the surface is full mirror, the main rod and spiral blade are laser welded, beautiful, no material hidden, both ends are quick insert structure, more convenient disassembly.
5.Rotary motor: The reducer motor adopts hypoid gear reducer, the meshing friction of the gear is small, and the transmission efficiency is more than 90%. Output spindle double leakproof mode, front dust ring after oil seal, quick cone-type flange connection, easier disassembly.
6.The equipment is mainly composed of food grade 304 stainless steel, accessories PU, silicone.

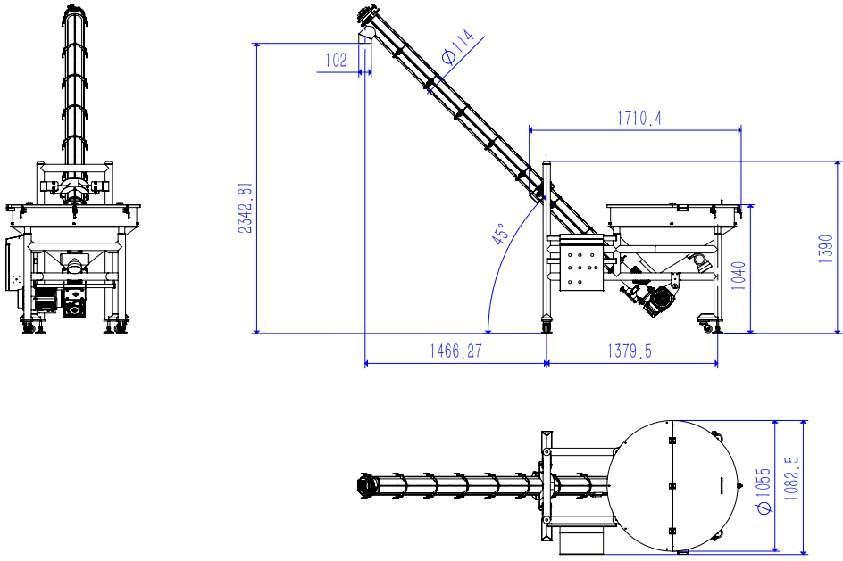

layout
Parameter
Model | D89 | D114 | D127 | D141 | D168 |
Diameter | 89mm | 114mm | 127mm | 141mm | 168mm |
Capacity | 1m²/h | 2-3m²/h | 3-4m²/h | 3-5m²/h | 5-8m²/h |
Dimension | 100L | 210L | 230L | 230L | 350L |
Fill high | Customize according to demand | ||||
Voltage | AC single 220V/AC three220V/AC three 380V,50HZ/60HZ | ||||
Material | Food grade 304 Stainless steel | ||||
Power | 0.75-2.2kw | ||||
