Work platform characteristics
1.Work platform strong, safe, beautiful and non-slip table.
2.Mainly made of food grade 304 stainless steel, clean and hygienic.
3.Solid structure, heavy load, no shaking and so on to give sufficient security.
4.The support foot adopts square pipe 150*150*3, the main frame square pipe 120*120*3, with 3mm thickness anti-slip table, with 32*2 safety guardrail.
Equipment advantage
1.Equipped with handrails and non-slip countertops, solid, safe and beautiful
2.Plate thick, bearing heavy

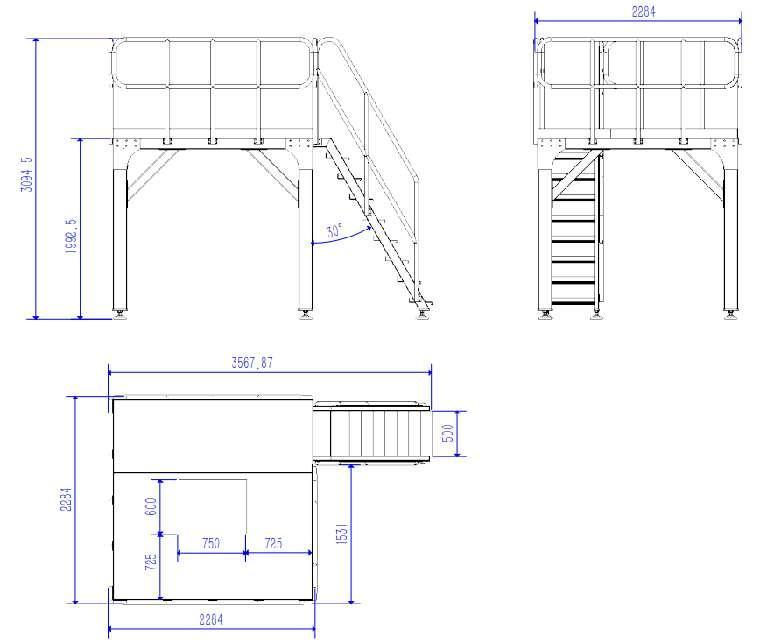

layout
Parameter
Dimension | |||
Frame main beam | 120*120*3 | Tamazaka | Tamazaka T3 |
Frame subbeam | 100*50*3 | Support foot covering foot | T5 |
Supporting leg | 150*150*3 | Foot cup | M24*150-Ф120 |
guardrail | Ф32*2 | Outer hexagonal screw | M12*30 |
Packaging mode | Fangtong iron frame |
