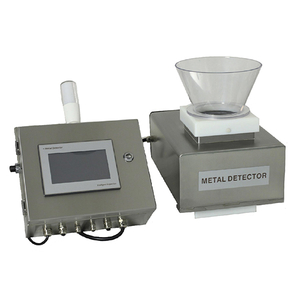

Product Features：
1.Optimized installation space for the powder industry, with a zero metal zone design for the detection head.
2.German Festo rapid rejection system with fast response time.
3.Hard-filled technology head, featuring top-notch stability, ensuring long service life of the head.
4.Anti-interference opto-isolator driver, allowing for remote installation of the operation panel.
5.Intelligent learning function for automatic parameter setting, ensuring easy operation.
6.X-R orthogonal decomposition and multi-filter algorithm for better anti-interference performance.
7.Phase intelligent tracking technology for improved stability.
8.DDS full digital and digital signal processing technology, enhancing detection accuracy.
9.Capable of detecting various metal materials such as iron, stainless steel, copper, aluminum, and lead.
Product Parameters：
Serial Number | Item | Description |
1 | Detection Aperture(mm) | 50 | 75 | 100 | 120 | 140 | 200 | 250 |
2 | Detection Accuracy(mm) | Fe | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 1.2 | 1.5 |
NFe | 0.6 | 0.8 | 0.8 | 1.2 | 1.2 | 1.5 | 2.0 |
Sus | 0.8 | 1.0 | 1.2 | 1.2 | 1.5 | 2.0 | 2.5 |
3 | Installation Space(mm) | 550 | 650 | 750 | 800 | 1000 | 1300 | 1500 |
4 | Throughput(L/H) | 1500 | 5000 | 8000 | 12000 | 20000 | 36000 | 60000 |
5 | Product Settings | Intelligent Self-Learning |
6 | Rejection Method | German Festo Ejection System |
7 | Power | 100~220V AC Single-phase，50~60Hz,55W |
