Overview

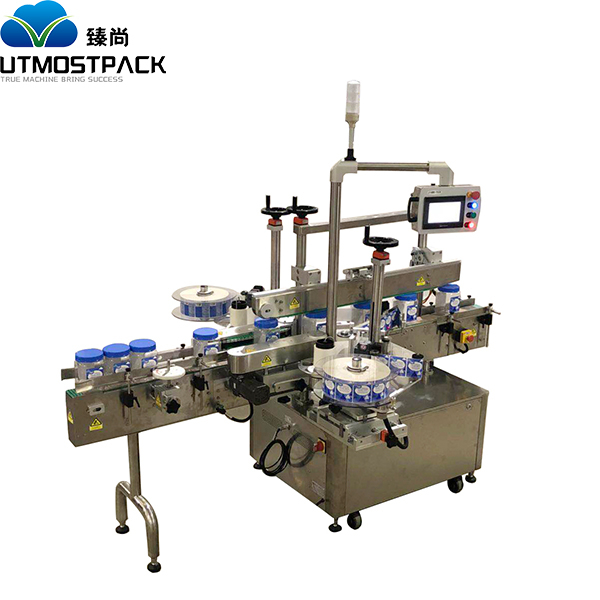

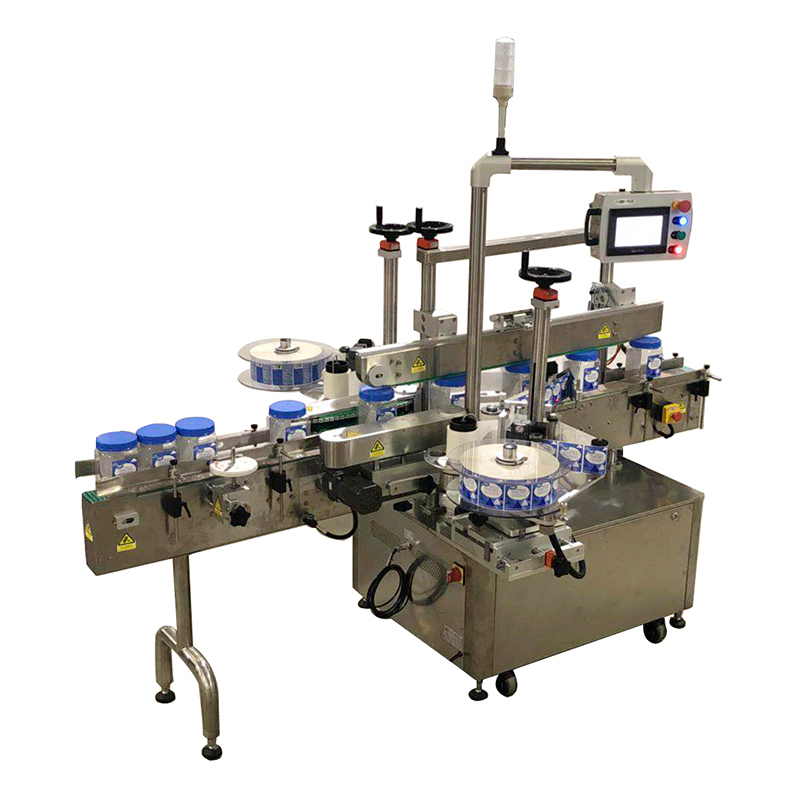

This is an intermitent motion box-shaped jar labeling machine featuring accuracy positioning with servo-driven label feeding. Equipped with high-accuracy photoelectric detection, it delivers stable performance at speeds ranging from 20 to 150 bottles per minute (depending on container size). The machine boasts a simple and compact design with easy size changeover capability, making it ideal for flexible production requirements.
Advantages
Precision Registration: Special sensor detects bottle orientation features for accurate alignment.
Accuracy position: Top conveyor belt synchronizes with main conveyor to maintain bottle positioning
Flexible Handling: easy for different jars size changeover
Centralized Management: Integrated control panel displays peripheral device parameters and alarms.
Smooth Operation: Servo motor-controlled label feeding ensures precise and reliable performance.
User-Friendly Design: Compact layout with easy access for troubleshooting and maintenance.
Parameters:
Model: | A920 |
Production Capacity: | 20-120labels/min |

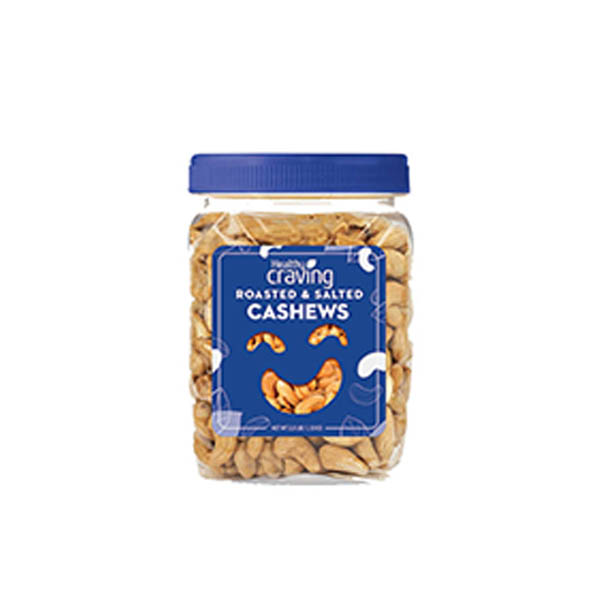

Packaging Container: | Jar, Tin, Can, Bottle Etc |
Container Size: | Width 30-90mm, Height 30-300mm |
Label length | 10-200mm |
Precison | +-1mm |
Voltage: | Single Phase, 220V,50/60HZ |
Power Consumption: | 1.3KW |
Machine Dimensions: | 3000×1620×1591mm |
Weight: | 350KG |

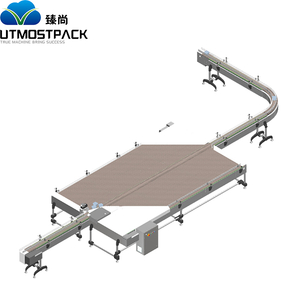

Layout
