Product Overview

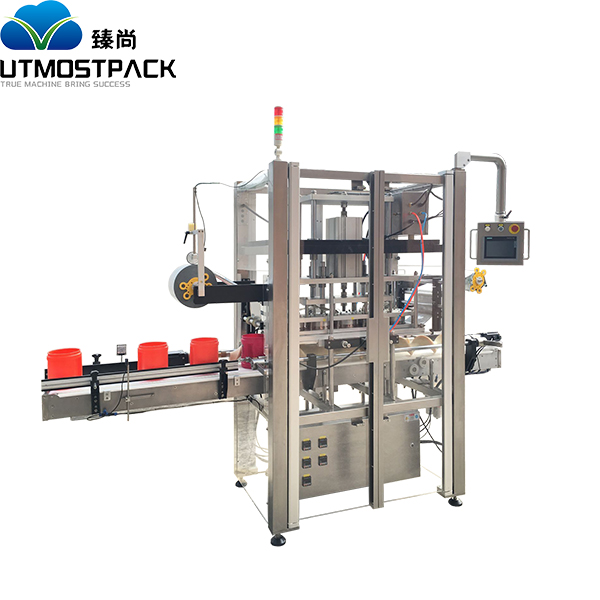

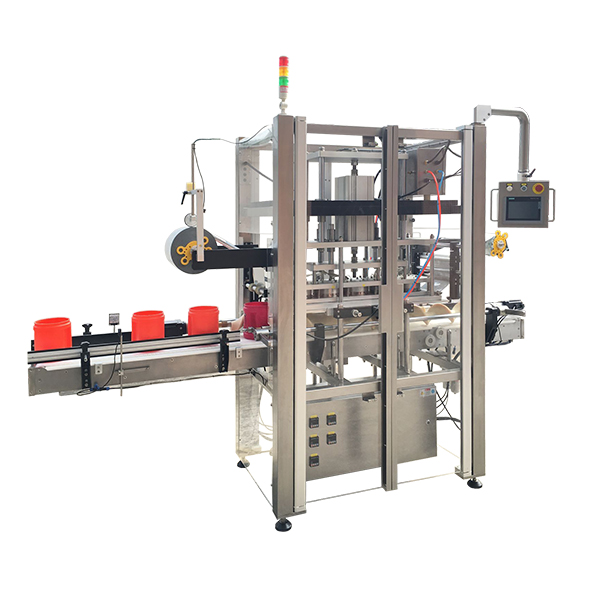

This 6-head intermittent jar sealing machine features a screw feeding system and mold positioning, with custom-designed sealing heads that ensure both secure sealing and aesthetic finish. With a maximum speed of 40 bottles per minute, its open-frame design offers easy maintenance while maintaining, compact dimensions and stable performance, making it an ideal choice for low-volume production solutions.
Performance Parameters
MODEL | FS-6 |
Sealing Head | 6 |
Speed | Up to 40jars/min |
Jar mouth diameter | According to sample |
Jar size | According to sample |
Conveyor height | 850+-50mm |
Air Source | 0.5-0.6Mpa |
Power supply | AC220V 50/60Hz 3KW |
Machine Size: | L1850mm-W1700mm-H2600mm |
Machine Weight: | 800kg |
Product Advantages

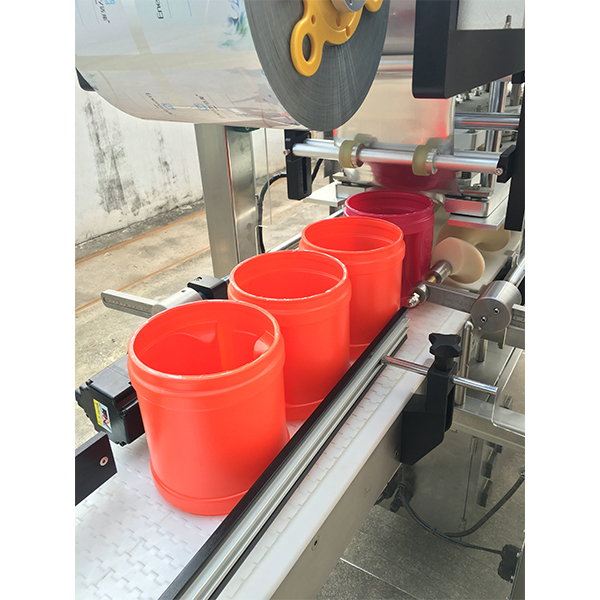

Smooth Transfer:The contour-designed bottle screw ensures precise and high-speed bottle feeding.
Precision Positioning:Mold-guided positioning guarantees accurate sealing alignment.

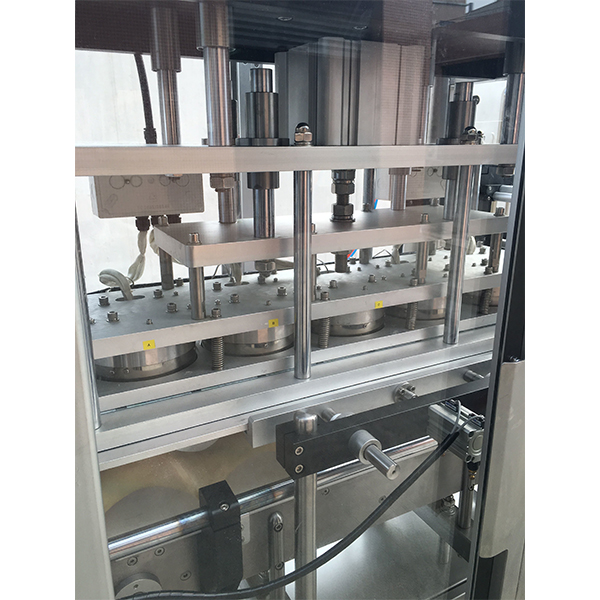

Professional Sealing:Patented sealing heads require no manual adjustment.
Individual Control:Each sealing head features independent temperature and motion control.
Production Monitoring: automatic pause with HMI alarm triggers when outlet reaches capacity.
Compact & Performance:Space-efficient design delivers reliable operation at 40 seals/minute.

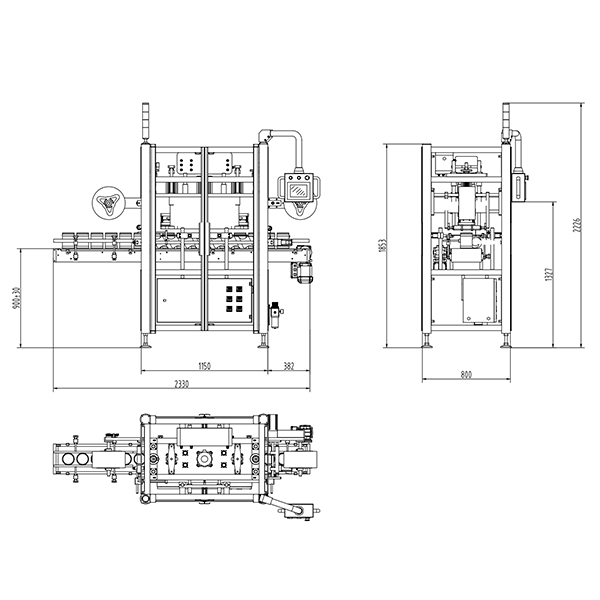

Layout
