Overview
The VXD-D1825-S is suitable for vertically transported bottled, canned, and boxed products, capable of detecting various foreign matters such as metal, glass, ceramics, and bones, with algorithms optimized for interference signals at metal can side walls and pull rings to effectively reduce false alarms. It enables high-precision detection, multi-scenario adaptation, functional expand ability, low false alarm rate, and efficient rejection efficiency without complex expertise, along with safety compliance with international standards.
Advantages
Based on the advanced Wise-Eye algorithm platform,excellent high-precision detection can be achieved.
The standard Al algorithm is simple and intelligent, no previous experience is required, it can quickly add new products according to the wizard.
Customized Al algorithm is suitable for special products. standard algorithm and customized algorithm can detect in parallel to further improve the detection accuracy.
It is integrated with a fast pusher rejector, it can accurately reject NG product from the high speed production line.
4G network wireless connection, It can remotely identify malfunctions in the equipment's software and provide online technical support and operations.Server-level Linux system,computer virus immunity, abnormal power failure without data loss.
Conveyor system using belt or chain plate structure, flexible adaptation to the practical production line.
Parameters
Model | VXD-D1825-S |
X Radiation Source | 210W/350W |
X-Ray Leakage | <1 μSv/h, superior to the internationally accepted radiation safety standard |
Detection Precision | Sus Ball:0.3mm, sus wire:0.2*2mm, Glass Ball:0.8mm, Ceramic Ball:0.7mm |
Conveyor Speed | 5～80 m/min |
Max Detection Size | (W)180×(H)250 mm |
Power Supply | AC220V，50 - 60Hz |
Environment | Working Temperature0~45°C,Relative Humidity 30~85%no condensation |
IP Rate | IP66 for Conveyor,IP54 for other parts |
Material | 304 SUS，Mirror/Sandblasted |

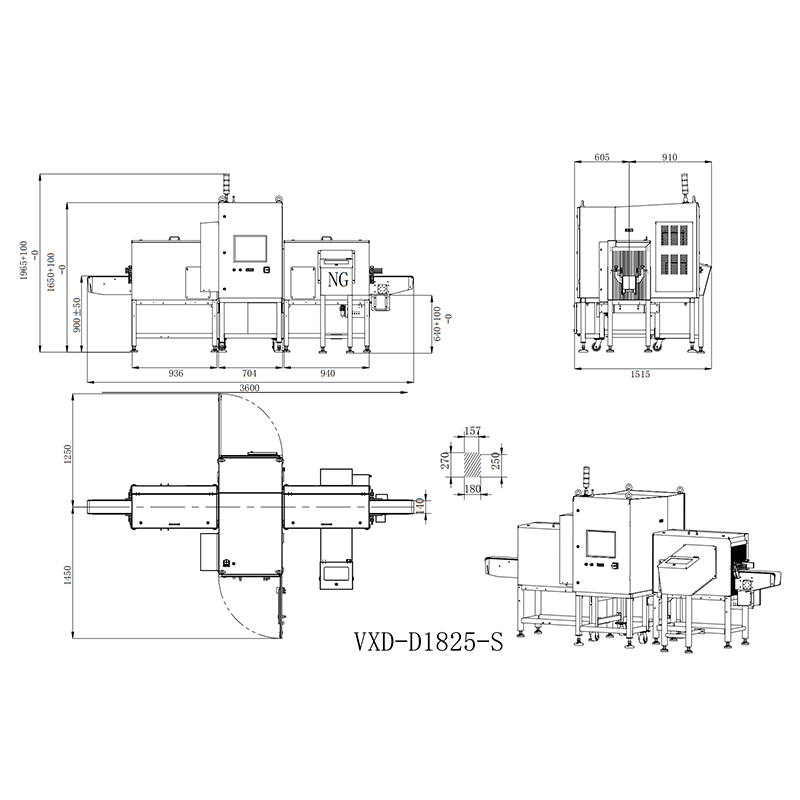

Layout
