Overview

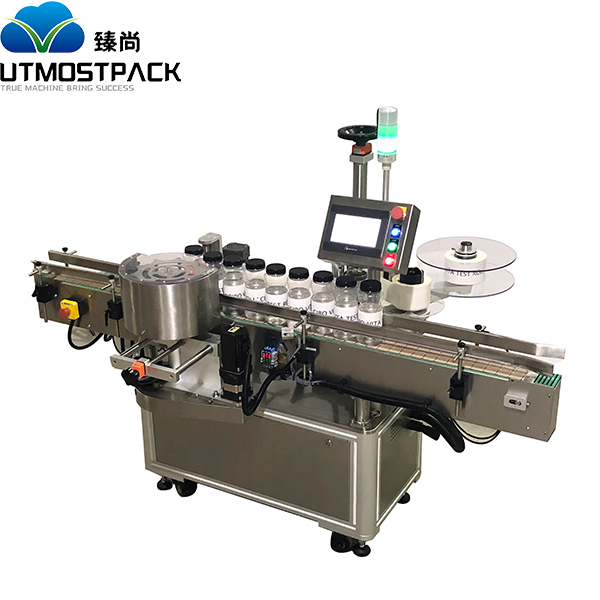

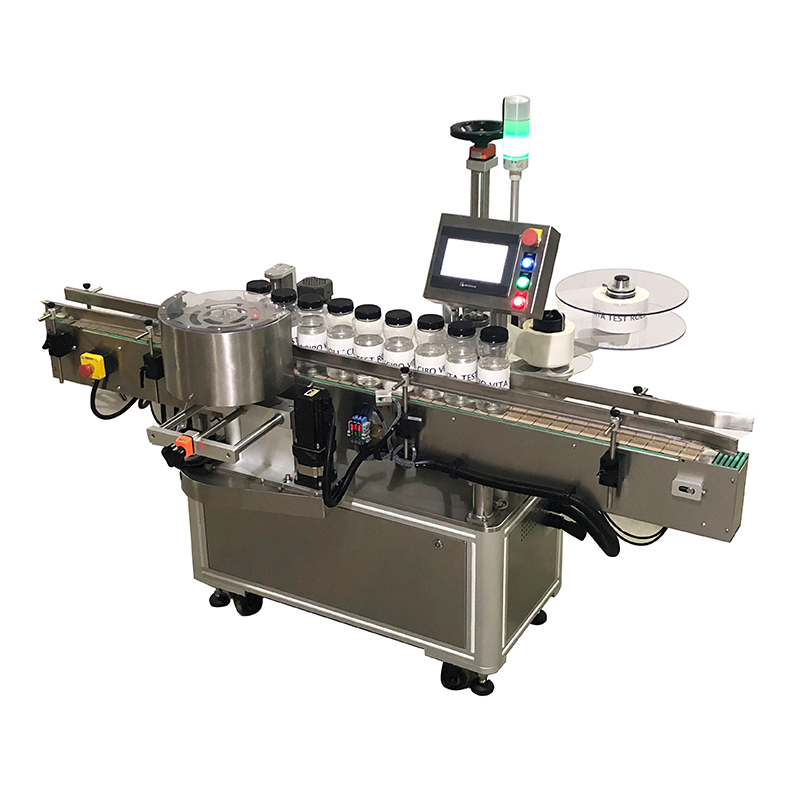

This is an intermittent motion round bottle labeling machine featuring mold-based precision positioning and servo-driven label feeding. Equipped with high-accuracy photoelectric detection, it delivers stable performance at speeds ranging from 20 to 120 bottles per minute (depending on container size). The machine boasts a simple and compact design with easy size changeover capability, making it ideal for flexible production requirements.
Parameters:
Model: | A117 |
Production Capacity: | 20-120labels/min |
Packaging Container: | Jar, Tin, Can, Bottle Etc |
Container Size: | Diameter 20-100mm |
Label length | 10-200mm |
Precison | +-0.5mm |
Voltage: | Single Phase, 220V,50/60HZ |
Power Consumption: | 1.3KW |
Machine Dimensions: | 1800×1100×1450mm |
Weight: | 350KG |
Advantages
Precision Registration: Special sensor detects bottle orientation features for accurate alignment.
Accuracy position: 3-point holding ensures precise bottle positioning during rotation.
Flexible Handling: easy for different round size by change mould
Centralized Management: Integrated control panel displays peripheral device parameters and alarms.
Smooth Operation: Servo motor-controlled label feeding ensures precise and reliable performance.
User-Friendly Design: Compact layout with easy access for troubleshooting and maintenance.

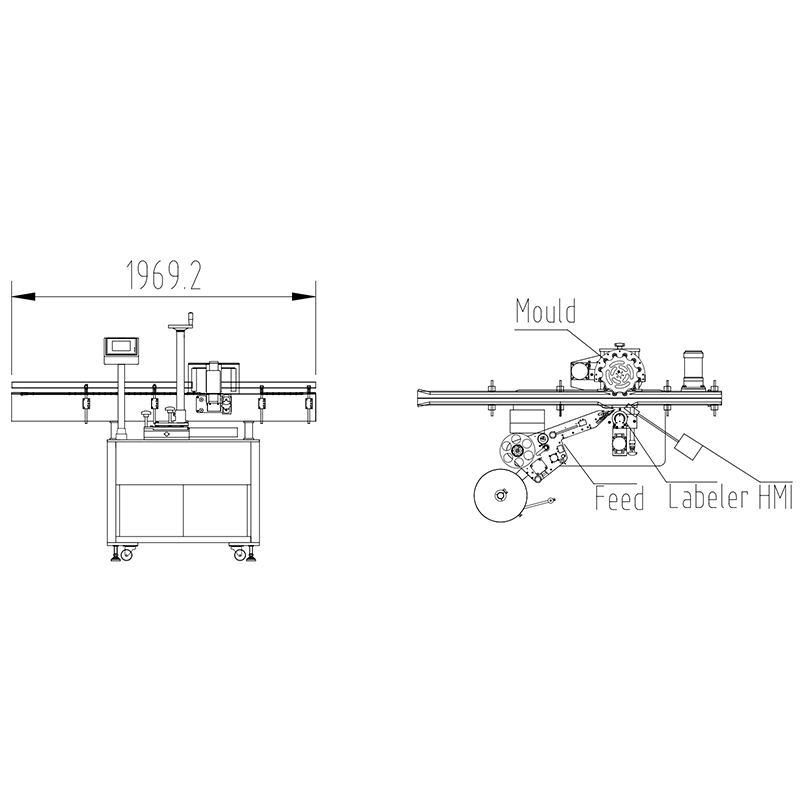

Layout
