Product Overview

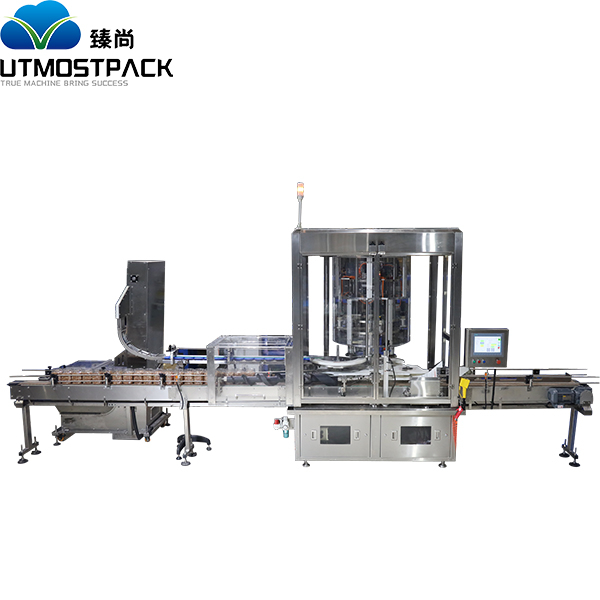

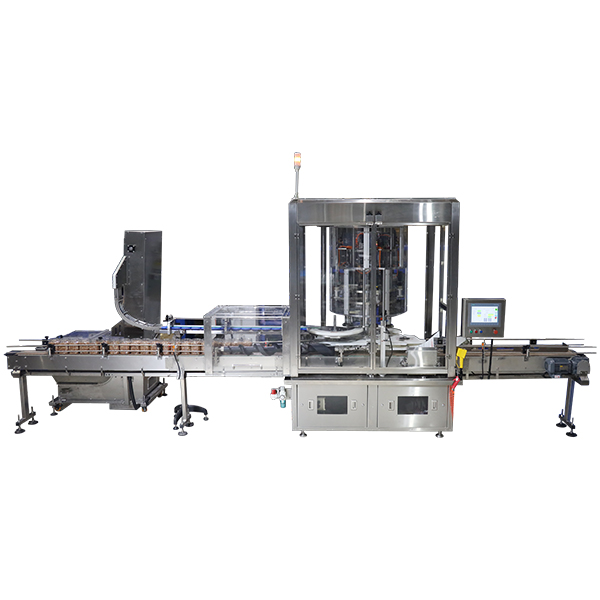

This continuous rotary capping machine features a 5-head servo system with precise positioning and torque control, delivering speeds of 60 bottles per minute. It includes automatic cap feeding, a compact and user-friendly design, quick changeover for different jar size, stable performance, and automatic defect rejection for quality assurance.
Performance Parameters
MODEL | XG-5S |
Capping Head | 5 |
Speed | Up to 60jars/min |
Cap Diameter | According to sample |
Bottle Size | According to sample |
Conveyor height | 850+-50mm |
Air Source | 0.5-0.6Mpa |
Power supply | AC220V 50/60Hz 3KW |
Machine Size: | L1850mm-W1700mm-H2600mm |
Machine Weight: | 3000kg |
Product Advantages
Smooth Transfer: Contour-designed bottle-in screw ensures precise and rapid bottle feeding.
Accurate Positioning: PP star wheel, shaped to match the bottle profile with a smooth surface, guarantees stable transfer.
Torque Control: Each capping head is independently servo-controlled for consistent performance.
Easy Changeover: Tool-free adjustment for quick jar & mouth size adaptation.
Production Control: Automatic pause with HMI alarm when the outlet is full.
Compact & Reliable: Space-saving design delivers stable operation at 40 jars/minute

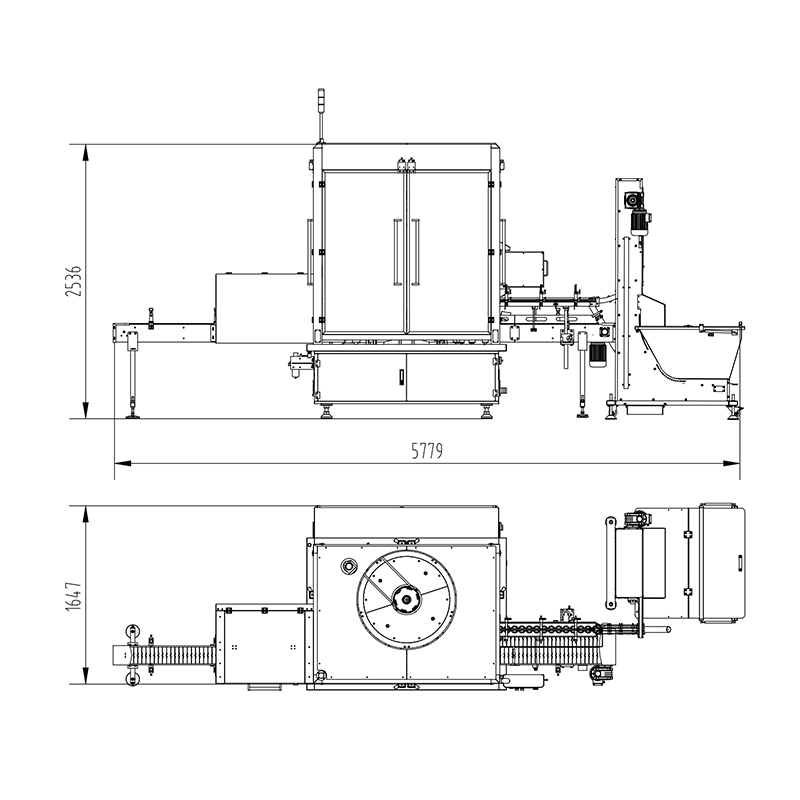

Layout
